Intelligent MIG MAG Welding Seam Tracking Finding Laser Vision Full Color Camera Sensor IL-PF400

Intelligent MIG MAG Welding Seam Tracking Finding Laser Vision Full Color Camera Sensor IL-PF400

IL-PF400 Laser Vision Welding Seam Tracking & Finding Sensor is a High-Resolution Laser Seam Tracking sensor in Sheet Metal Seam Tracking & Seam Finding Sensor. For metal pipes that require long welding times, the weld finding sensor helps track the path of the pipe to ensure weld consistency and strength, especially in complex environments such…

SKU: IL-PF400
Category: ,
Tags:

Description

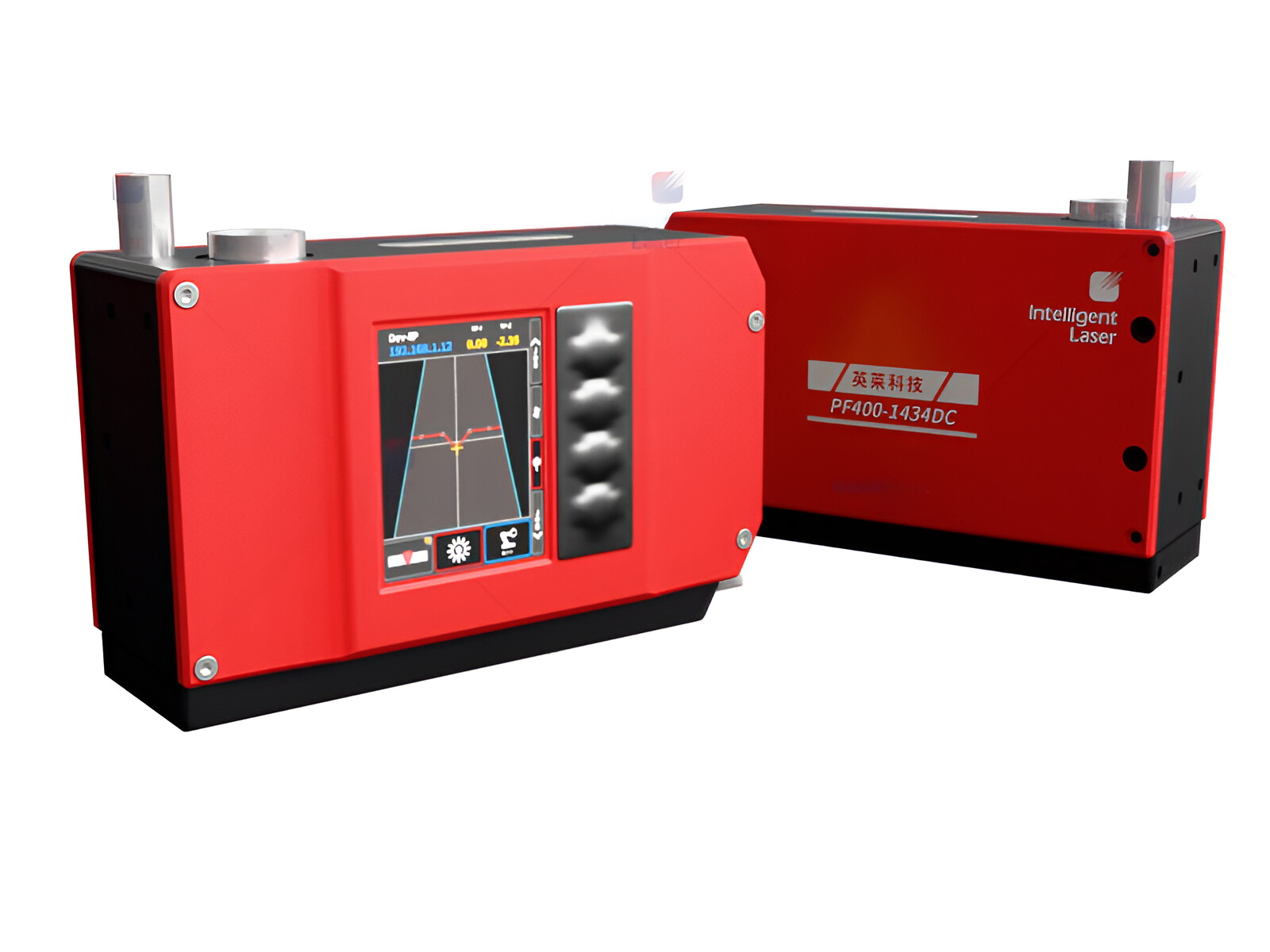

IL-PF400 Laser Vision Welding Seam Tracking Sensor


With the viewing distance range of 292.5mm~630.5mm, optimum viewing distance of 403.5 mm, and the capability of detecting joint cap as small as 1mm, the IL-PF400 Laser Vision Welding Seam Tracking Sensor can ensure that the weld bead is precisely deposited in the joint by shifting the robot or machine program path. The laser vision sensor is used for real-time acquisition of seam information and quick processing of scanned information.

Features of IL-PF400 Laser Vision Welding Seam Tracking Sensor：

  1. Wide field of view
  2. High-level integration, compact in size, easy assembly and disassembly.
  3. The algorithm applied in the product can effectively suppress the interference caused by arc and splash.
  4.  Resistant to harsh industrial environments due to professional electrical protection design.
  5. Customized non-standard sensor structures are available.
