Description
LH-TC·Force controlled deburring tools
Comply with the products shape, eliminate workpiece error, provide a safe, fast, precise deburring solution.
Pain points of integrated die-casting deburring industry
In view of the pain points of the industry, Linghang innovatively launched intelligent force-controlled floating flexible deburring processing system

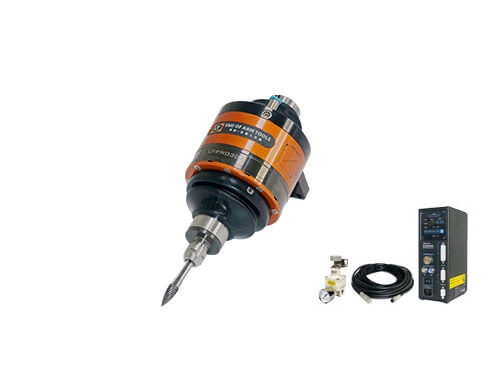

LT-FR030B-3060J
- 360°Radial floating, adaptive all-round deburring
- Position repeatability eliminate the workpiece error perfectly
- Absorb the deformation of the product during deburring process, adaptive processing, reduce the debugging difficulty
- Flexible contact between tool and workpiece to avoid over cutting
Standard configuration：
8m cables、Controller 1 set、Pressure regulate valve 1 piece、precision pressure regulate valve 1 piece、Pressure regulating filter
- Clamping: Φ6.0mm（CHK-6.0）/ Screw nut（K-265）
- Optional clamping chuck: Φ3.0mm（CHK-3.0）/ Screw nut（K-265）
- Wrench(12×14)2pieces /（22×27）2pieces
Use scope：
- cast iron, steel, aluminum alloy, resin etc. cast iron, steel, aluminum alloy, resin etc.
- Seam line
- Connection part below 2mm Connection part below 2mm
- Processed flanging
- General burrs General burrs
- Chamfer below C2

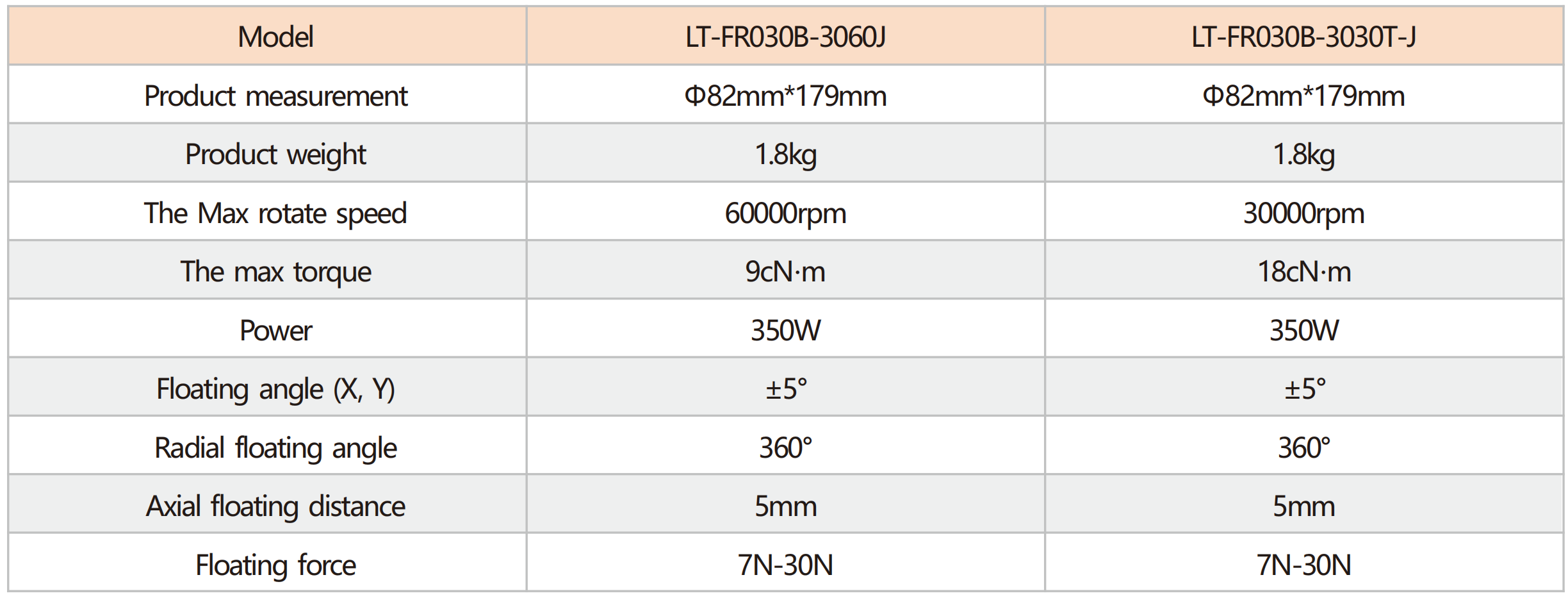

Product Parameters：
