Description
LH-TC·Force controlled deburring tools
Comply with the products shape, eliminate workpiece error, provide a safe, fast, precise deburring solution.
Pain points of integrated die-casting deburring industry
In view of the pain points of the industry, Linghang innovatively launched intelligent force-controlled floating flexible deburring processing system
LT-6000
- High Speed, Efficiency, Large volume cutting
- Over cut prevention, Low residue
- Automatically Replaceable tool, tool holder interface standard: ISO25
- Cooling method: Water cooling
- Interface: Interface: Φ10 pneumatic pipe
- Available tool holder diameter: 2-16mm
Standard configuration：
- Tool holder：ISO25-ER25-60
- Chuck（10mm）：ER25-10
- Standard wrench：ISO25
Optional configuration：Controller：LMO-100B-JX01
Use scope Use scope：
- Cast iron, steel, aluminum alloy, etc. cast iron, steel, aluminum alloy, etc.
- Seam line Seam line
- Connection part below 4mm Connection part below 4mm
- Processed flanging Processed flanging
- General burrs General burrs
- Chamfer below C5

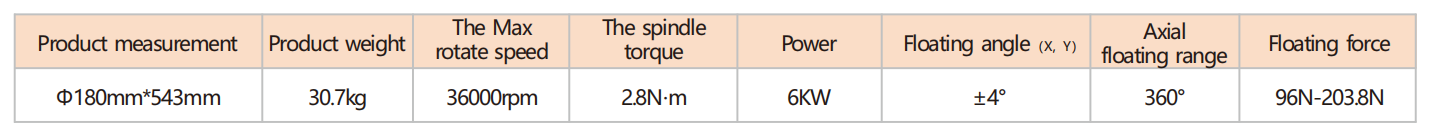

Product Parameters：
