Description
Test Equipment
Application Fields
X-S09-A-OP
Feature:
- Adopts high-precision resistance strain principle.
- Supports force measurement in the range of 0-200kg.
- S-type structural design,compression and tension,easy to install and flexible.
- Small size, beautiful appearance.

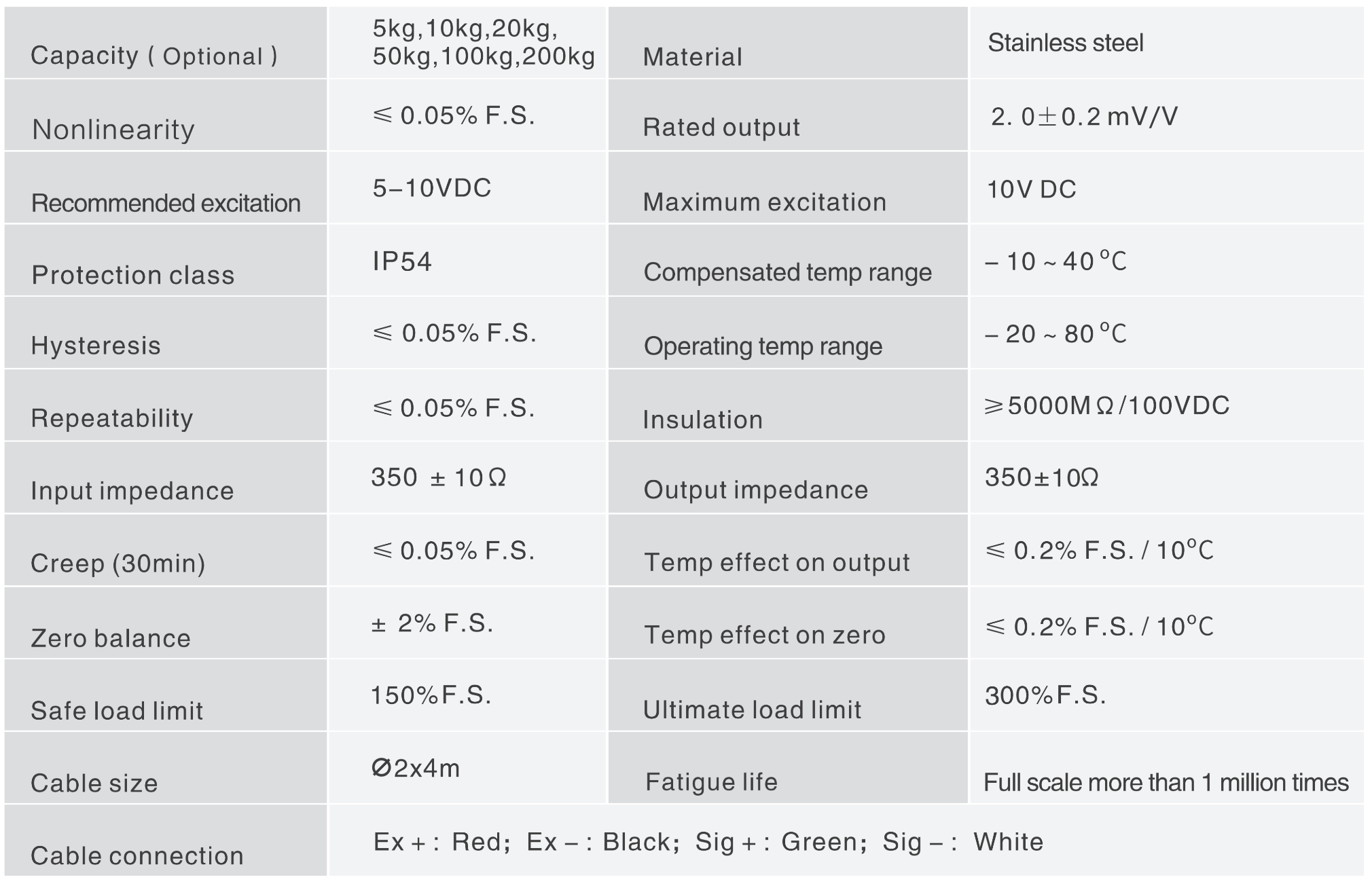

Technical Parameters:

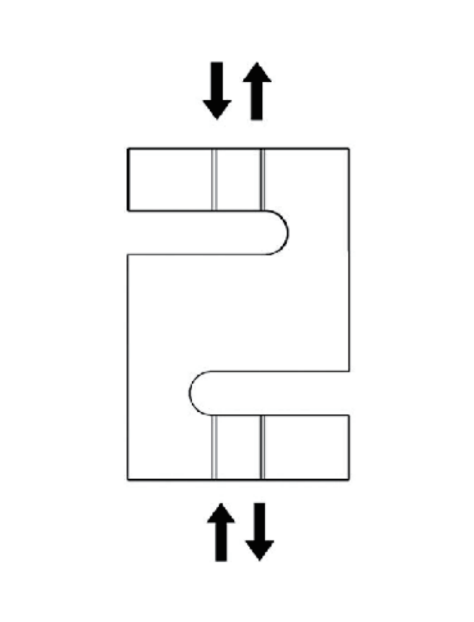

Load Direction: Wiring code:

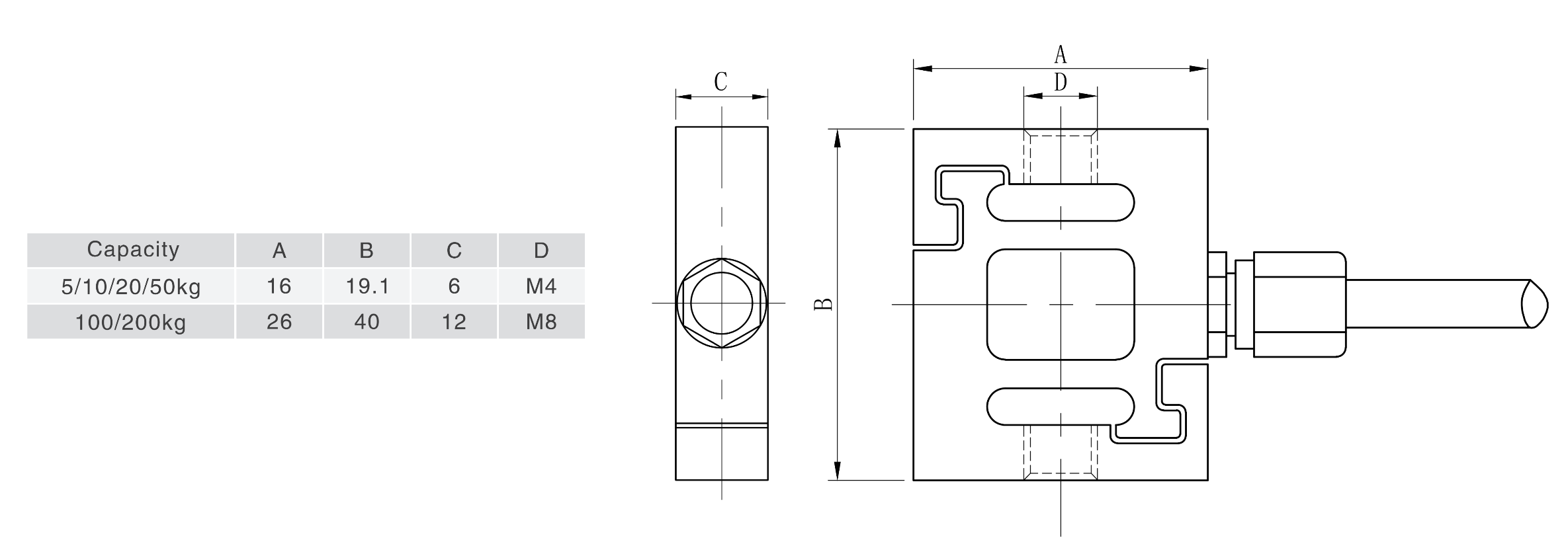

Dimensional Drawings(mm):
Applications:
Automotive, medical, robot, electronic,mechanical equipment, automation equipment, etc.
Force measurement in small space installation, such asfeling tester for keyboard switch, compression force measurement for hot and cold laminationmachine.
