Description
Product Features
- Medium-sized standardized design
- Convenient and simple maintenance
- Lightweight and tough high strength aluminum profiles
- Built-in multistage vacuum generator module
- HANWHA-specific body technology
- Different pass technology for a wide variety of workpiece applications
- High performance imported material, longer service life

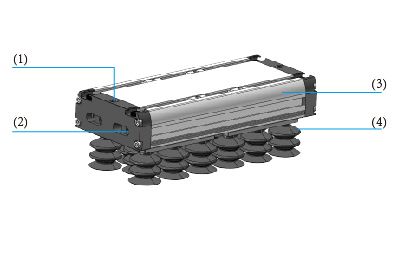

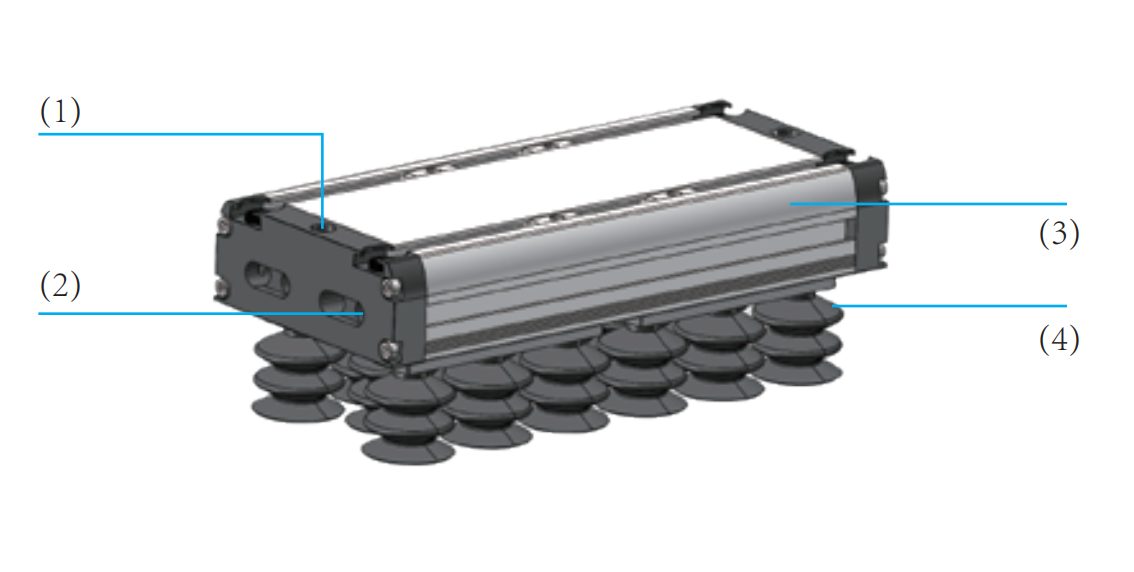

Product Structures
(1) Compressed air intake
(2) Exhaust hole with silencer function
(3) Aluminum profile can be customized
(4) Strong and wear-resistant 2.5 fold suction cup, the material
of the sucker is flexible, and it is easy to fit the workpiece

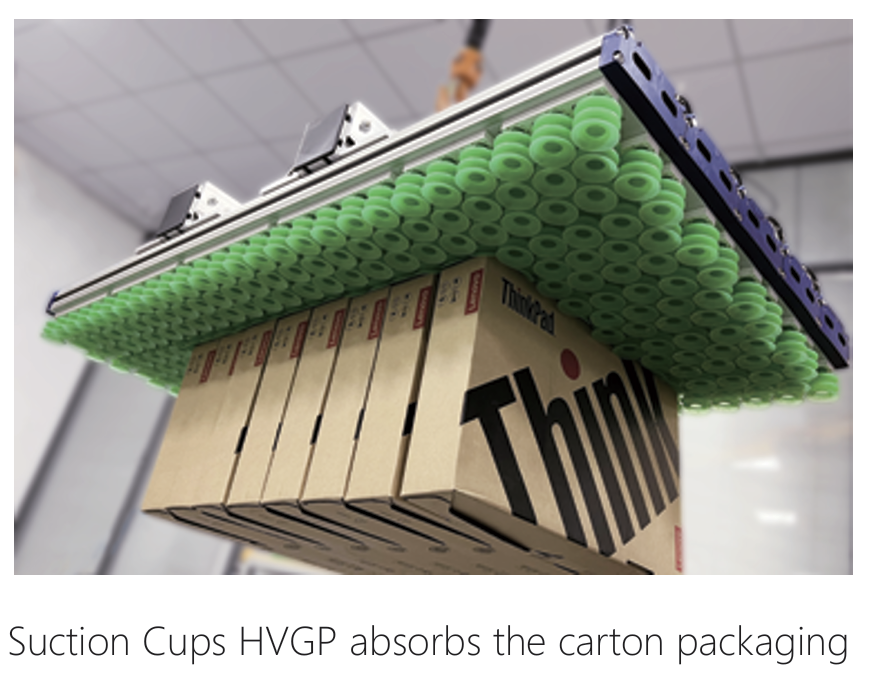

Product Advantages
- Suitable for corrugated board, plywood, iron plate and other
general workpieces
Product Codes
HVGP130 Vacuum Suction Cup Specifications

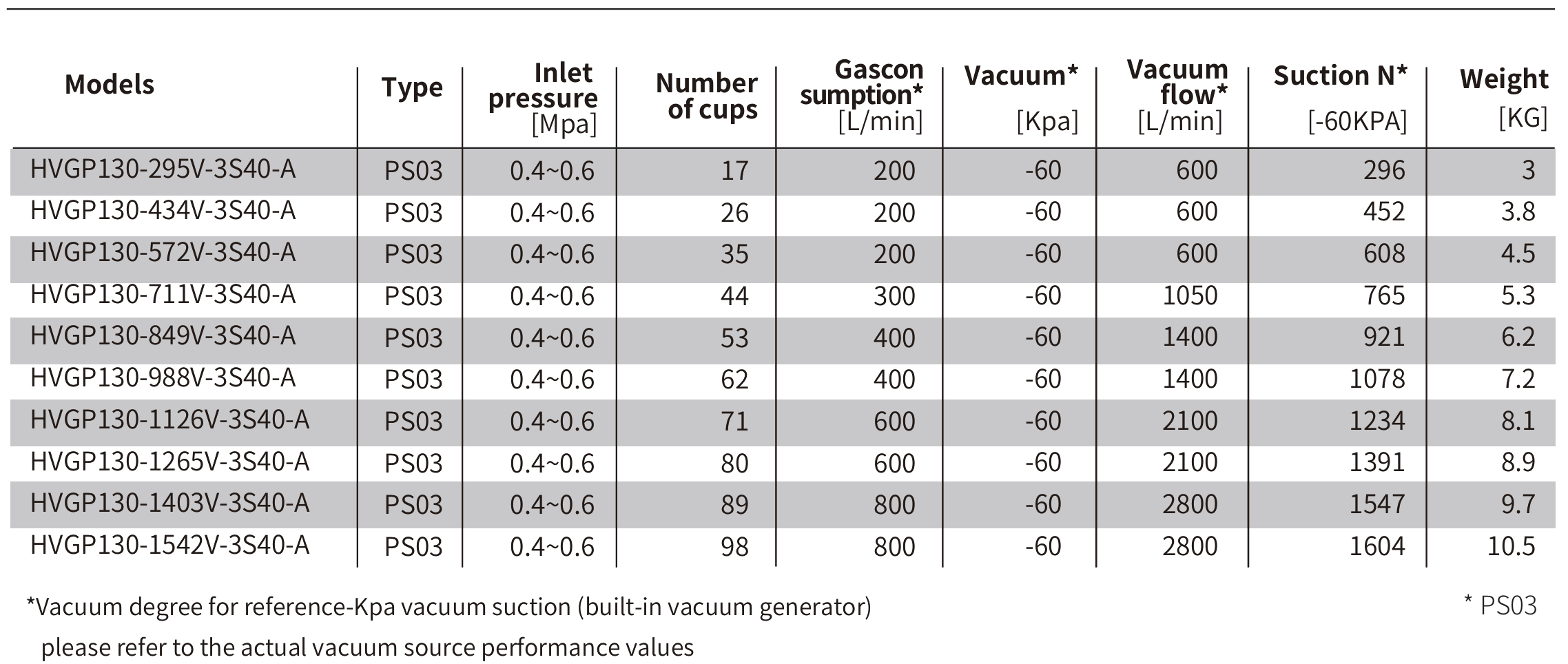

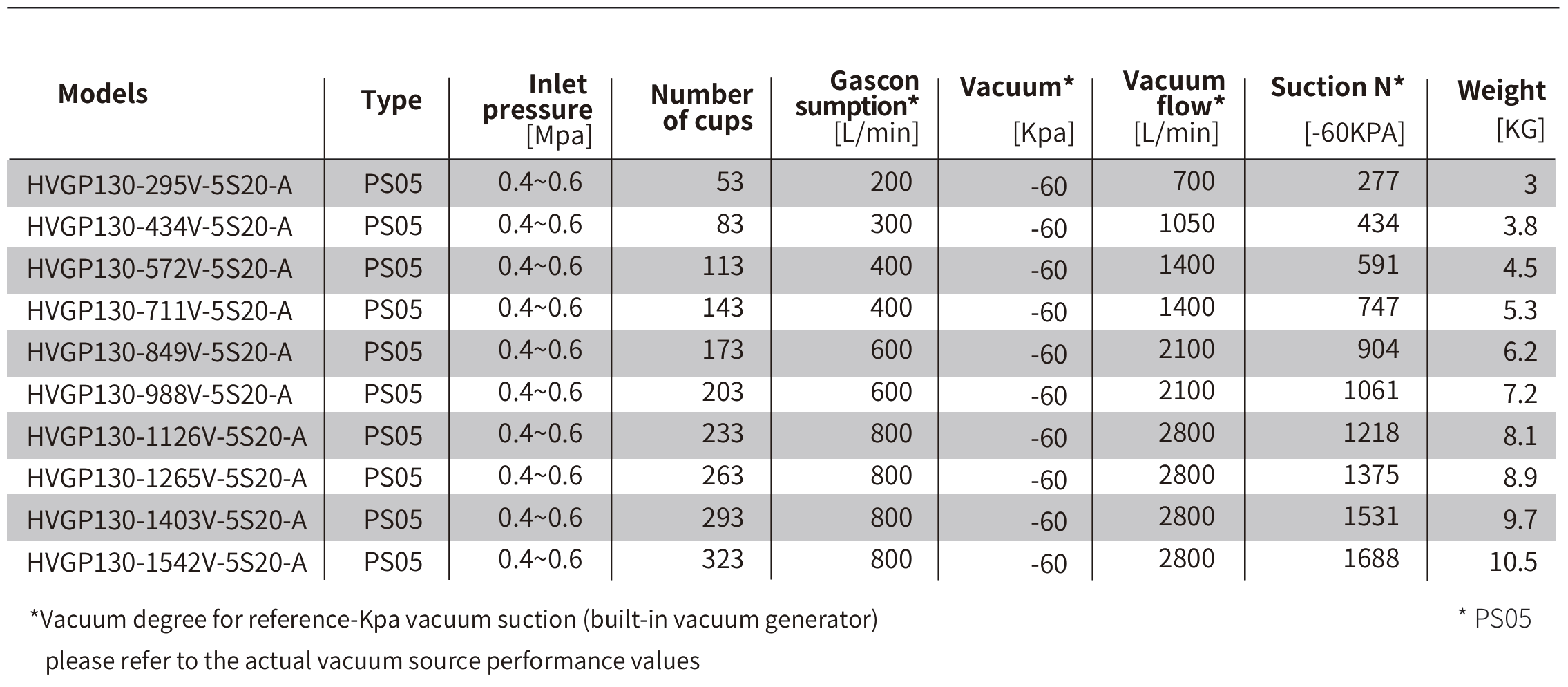

HVGP130 Technical Parameters

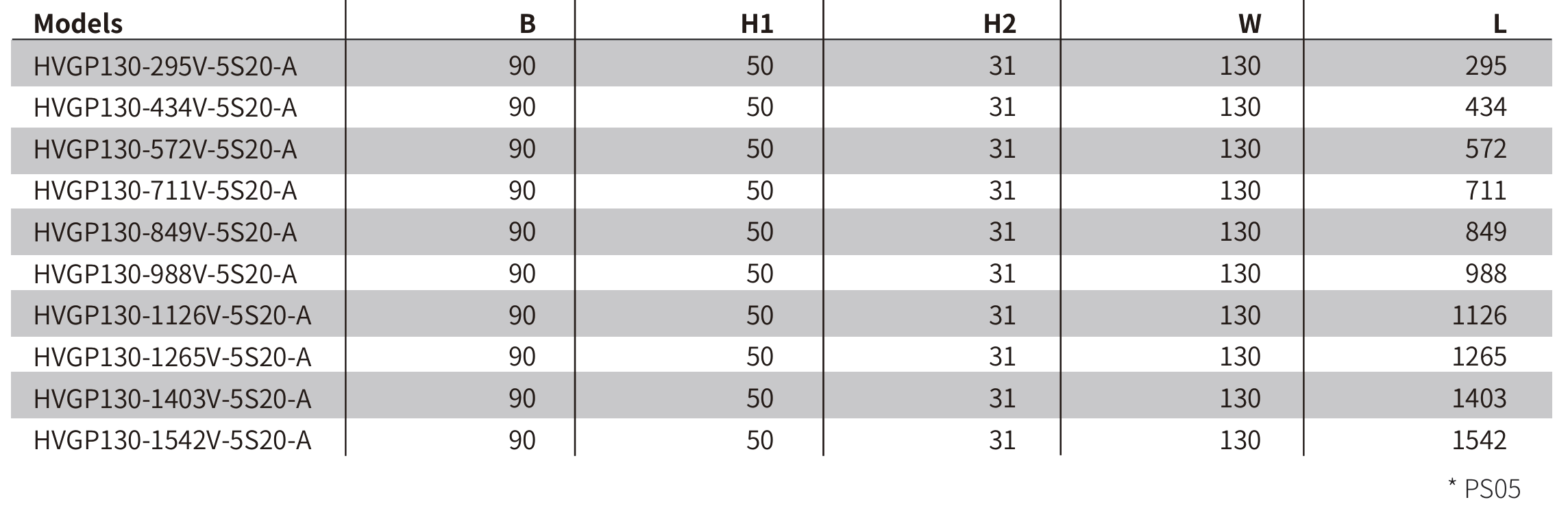

HVGP130 Design Parameters
SIZE[mm]
SIZE[mm]
