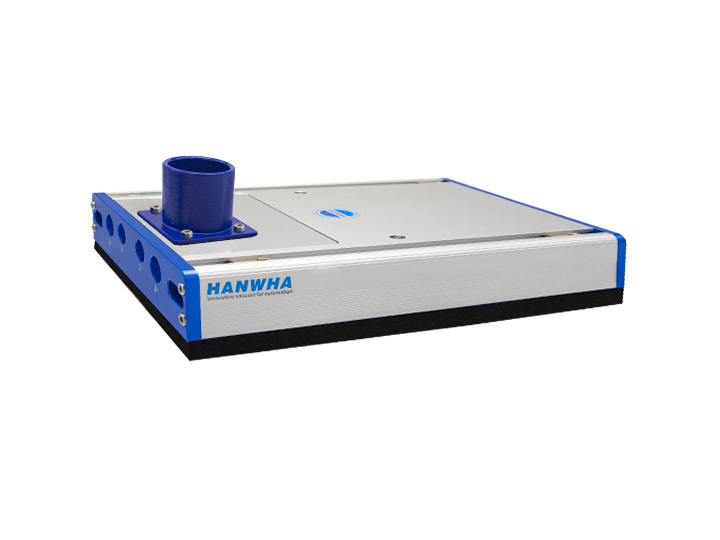

Description
Product Features
- Mediumsized standardized design
- Convenient and simple maintenance
- Adopting lightweight and tough high-strength aluminum profiles
- Design of external vacuum source
- Adopting HANWHA’s unique valve body technology
- Different pass techniques are suitable for a wider range of workpiece applications
- Original imported sealed foam pads from Europe, with longer service life

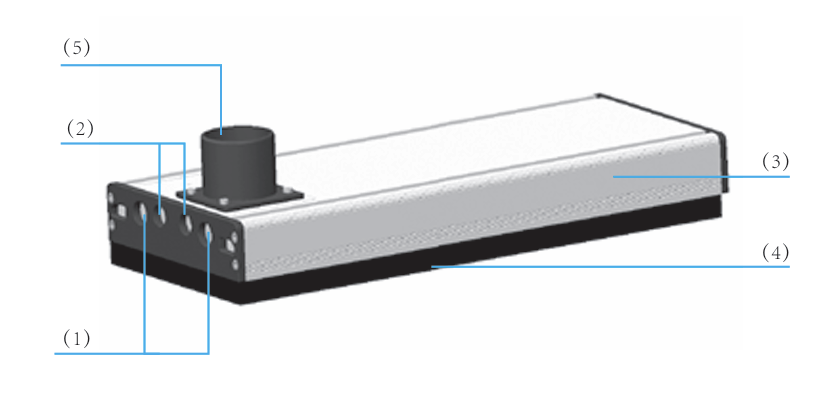

Product Structures
(1) P: G1/4 screw thread, air inlet
(2) V: G1/8 screw thread, back blowing/vacuum detection
(3) Aluminum profile can be customized
(4) Various types of imported foams can be customized
(5) Fan pump
Product Advantages
- Rigid workpieces
- Standard are used for wooden boards, pallets, aluminum profiles, and patterned steel
- Different gaskets can absorb and carry different types of workpieces
Product Codes
HVGP200 Foam Order Code
HVGP200 Technical Parameters

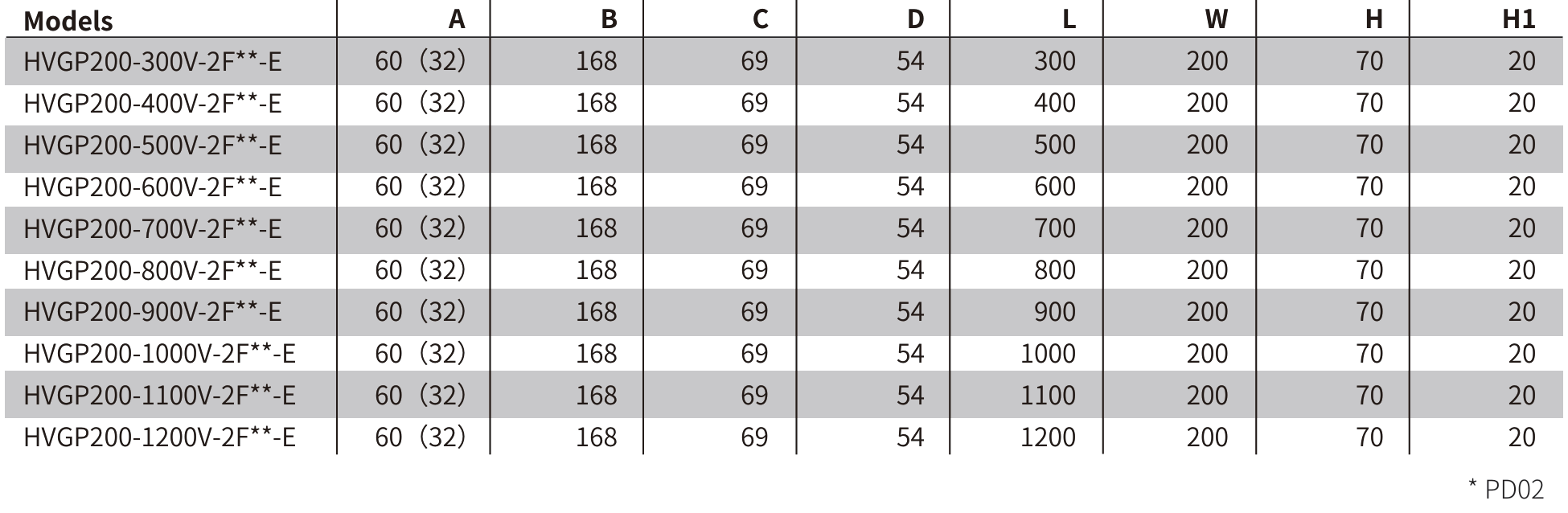

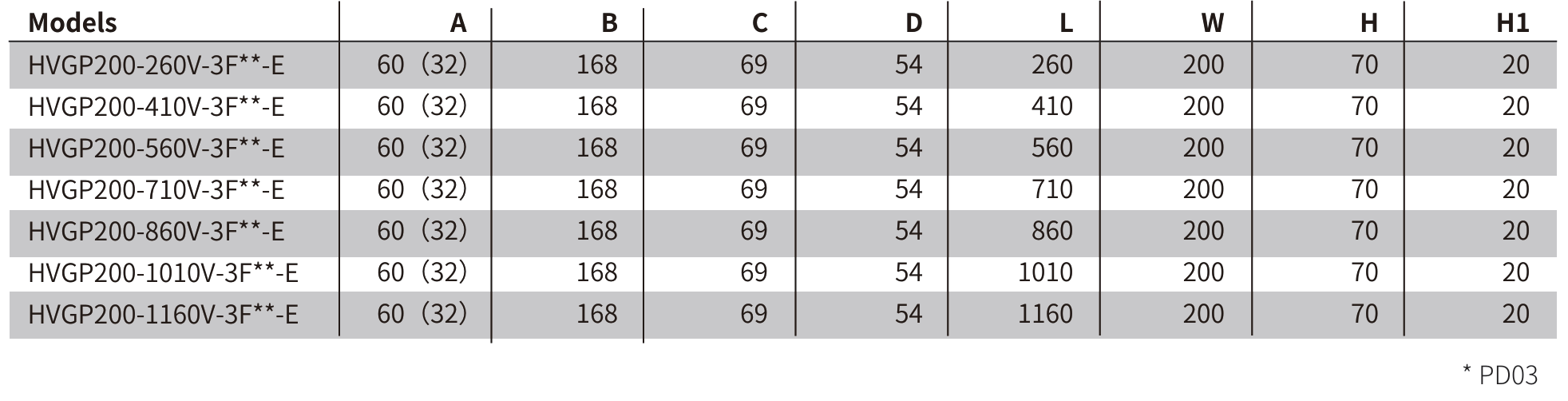

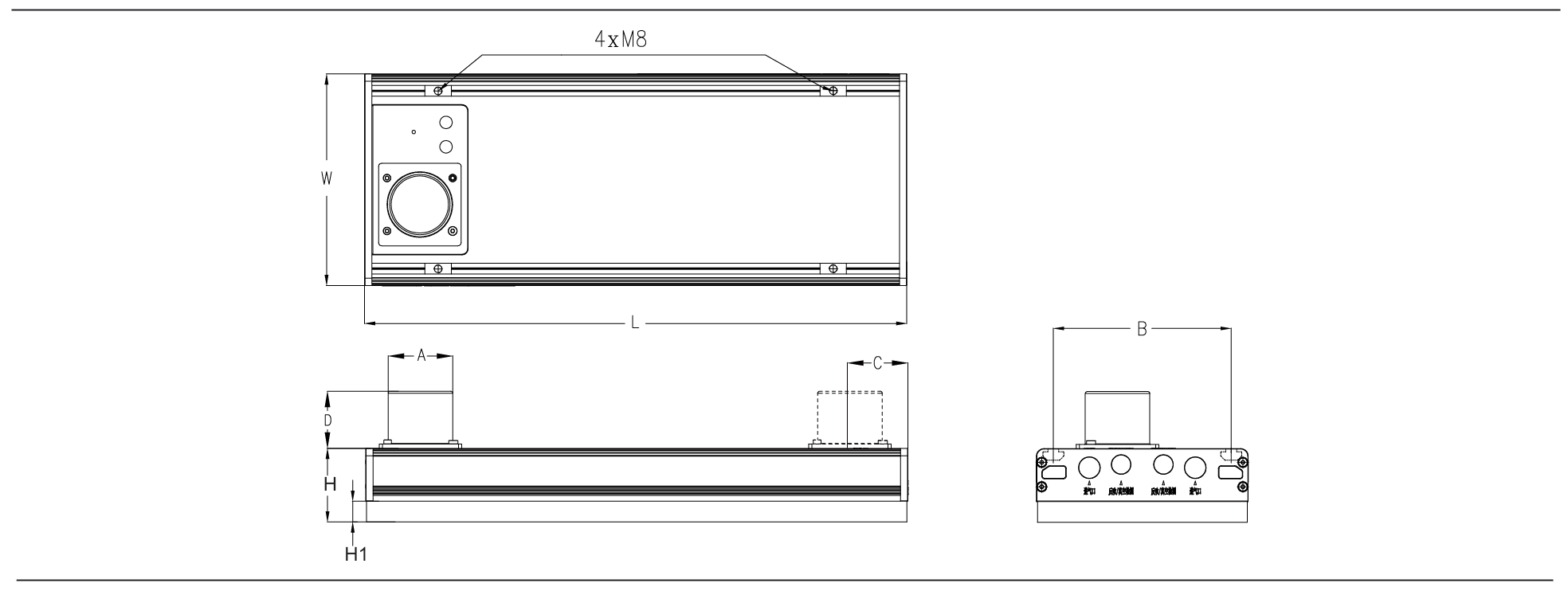

HVGP200 Design Parameters
Size[mm]
Size[mm]
