Description
Product Features
- Medium-sized standardized design
- Convenient and simple maintenance
- Lightweight and tough high strength aluminum profiles
- Built-in multistage vacuum generator module
- HANWHA-specific body technology
- Different pass technology for a wide variety of workpiece applications
- High performance imported material, longer service life

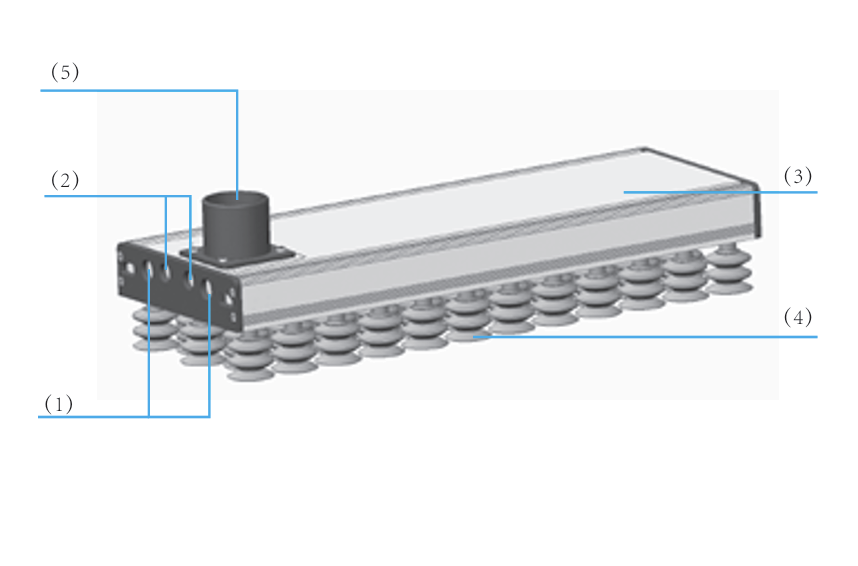

Product Structures
(1) P: G1/4 screw thread, air inlet
(2) V: G1/8screw thread, Blowback/vacuum detection
(3) Aluminum profile can be customized
(4) Strong and wear-resistant 2.5 fold suction cup, the material of the sucker is flexible, and it is easy to fit the workpiece
(5) fan pupm
Product Advantages
- Suitable for corrugated board, plywood, iron plate and other
general workpieces
Product Codes

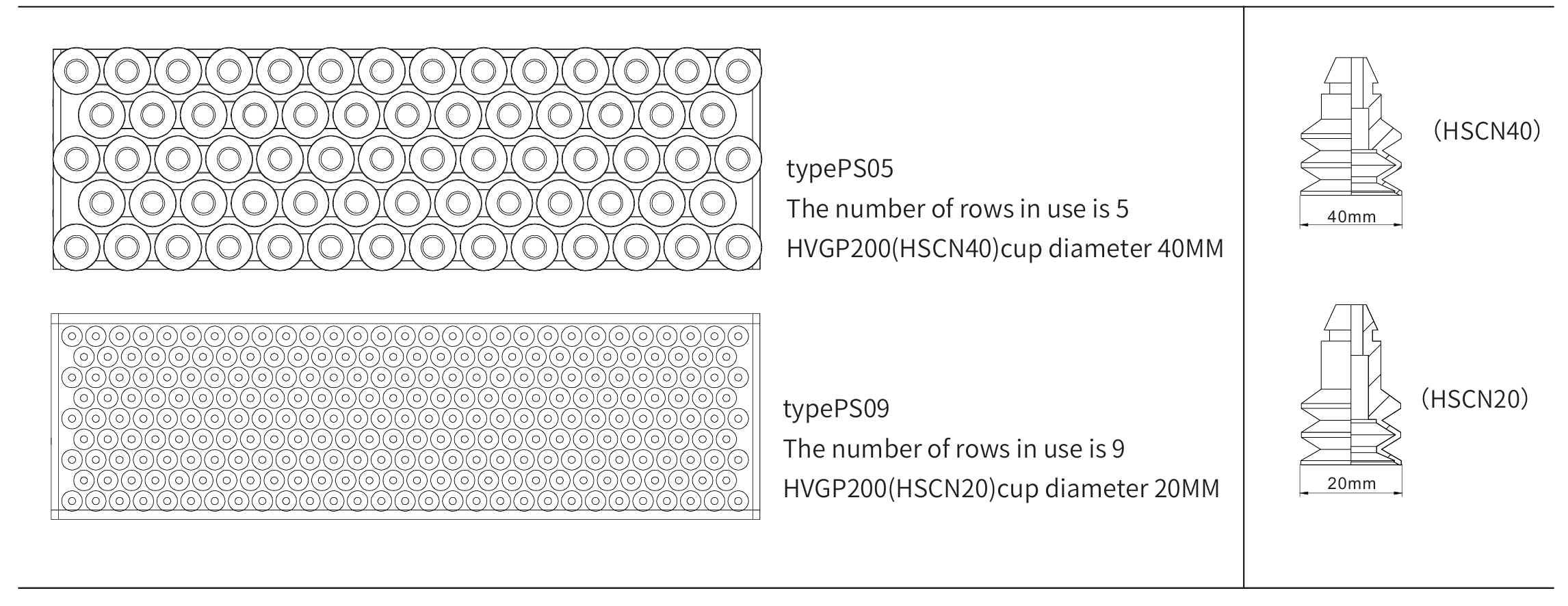

HVGP200 Vacuum Suction Cup Specifications

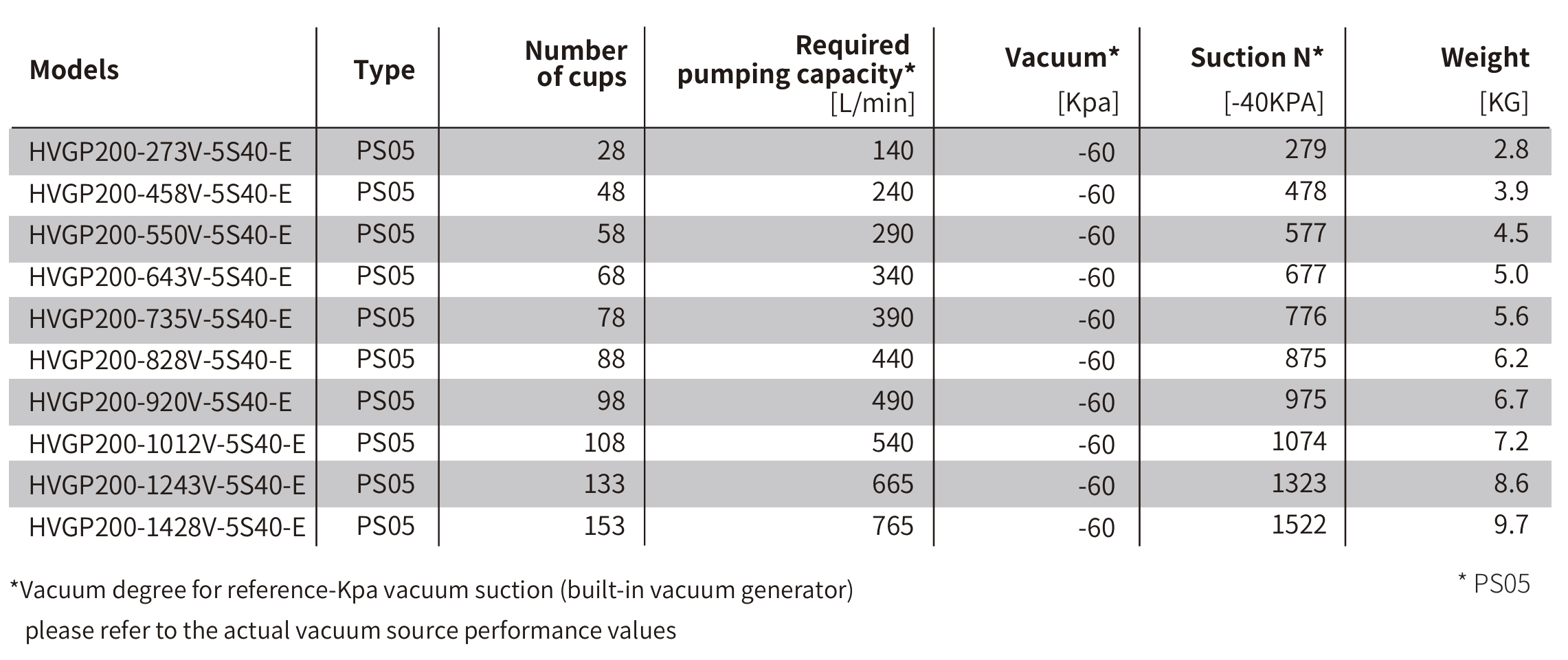

HVGP200 Technical Parameters
HVGP200 Design Parameters
SIZE[mm]
SIZE[mm]
