LH-TC Pneumatic Clamping Finger Gripper LT-TG2-64
LH-TC Pneumatic Clamping Finger Gripper LT-TG2-64 - Image 2

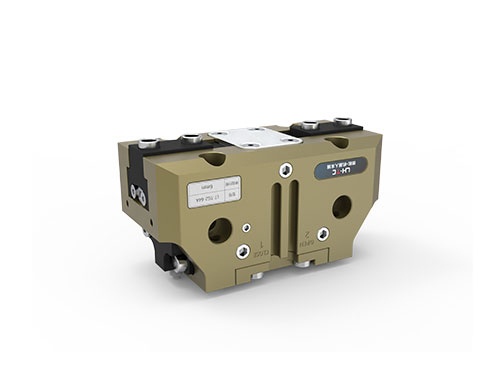

LH-TC Pneumatic Clamping Finger Gripper LT-TG2-64

Pneumatic gripper is one of end-effectors which takes compressed air as power to clamp or grab workpieces, can replace human hand, used to catch workpieces with different shapes, measurements, weights and materials, to combine grabbing force and grabbing stroke perfectly and then improve the stability of production process.

SKU: LT-TG2-64
Category: ,
Tags:

Description

LH-TC CLAMPING TECHNOLOGY

Technology highlights

Model Rules
For example：LT-PG2-125A-CFM-HT-DP LT-PG3-100B-OFM-HT-PP

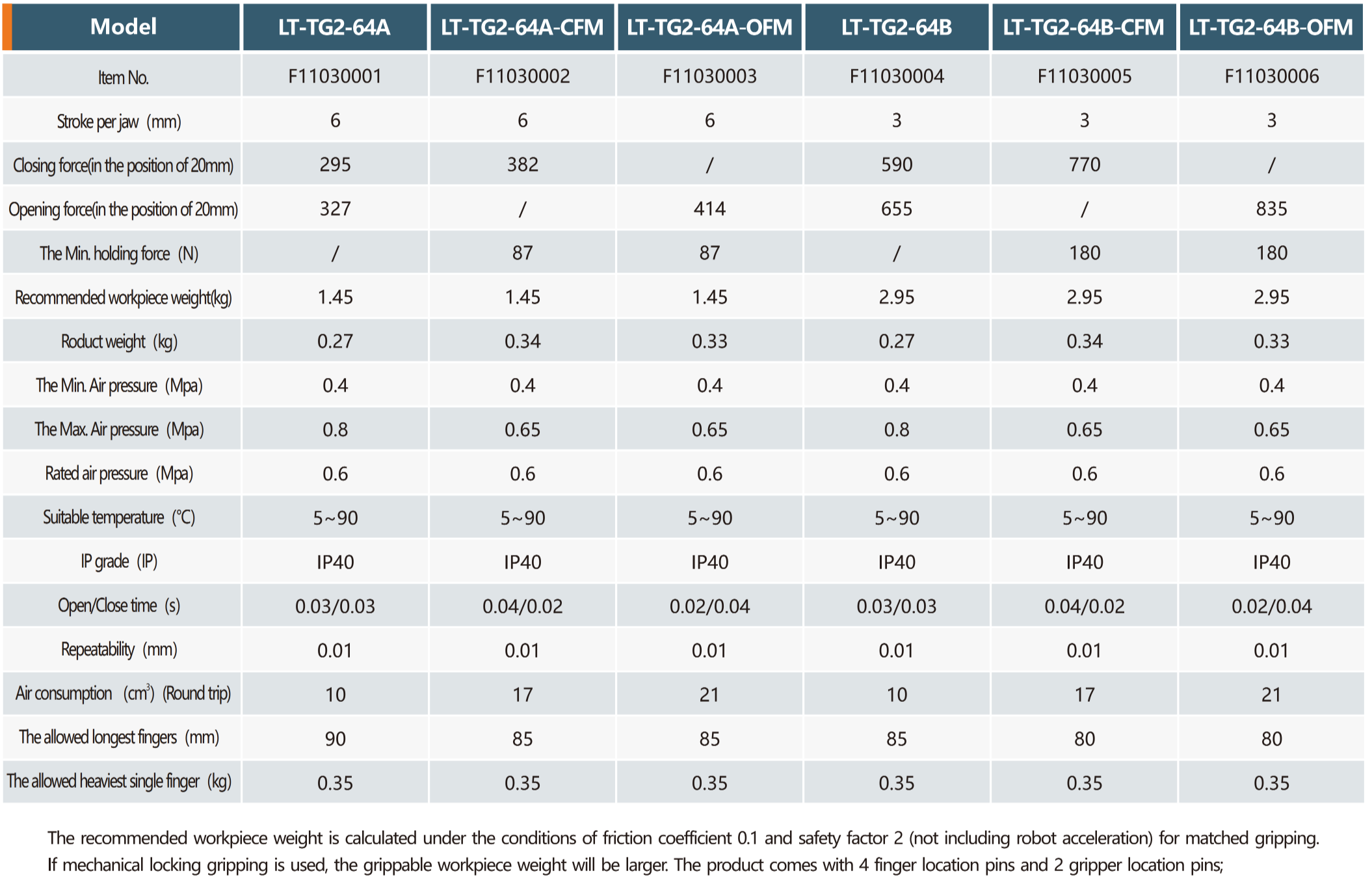

Model：LT-TG2-64 series

  • Stroke per jaw: 6mm/3mm
  • Recommended workpiece weight: 1.45-2.95kg
  • Weight: 0.27-0.34kg
  • Self lubricating design ensures reliable clamping
  • T-shaped guide rail design, accurately grasps various workpieces
