Description
Product Features
- Medium-sized standardized design
- Convenient and simple maintenance
- Lightweight and tough high strength aluminum profiles
- Built-in multistage vacuum generator module
- HANVAC-specific body technology
- Different pass technology for a wide variety of workpiece applications
- High performance imported material, longer service life
Product Structures
(1) Fan bump
(2) Compressed air intake
(3) Exhaust hole with silencer function
(4) Aluminum profile can be customized
(5) Strong and wear-resistant 2.5 fold suction cup, the material of
the sucker is flexible, and it is easy to fit the workpiece
Product Advantages
- Suitable for corrugated board, plywood, iron plate and other
general workpieces

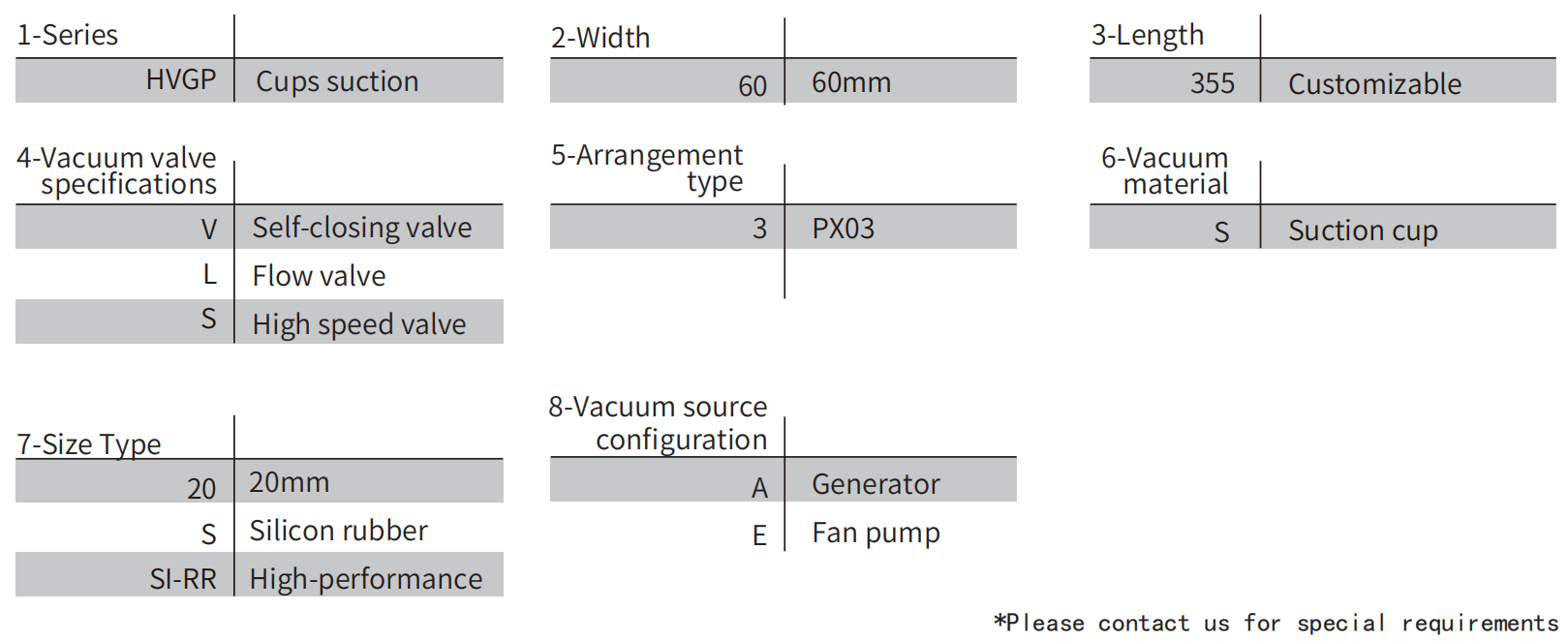

Product Codes
HVGP60 Vacuum Suction Cup Specifications
HVGP60 Technical Parameters

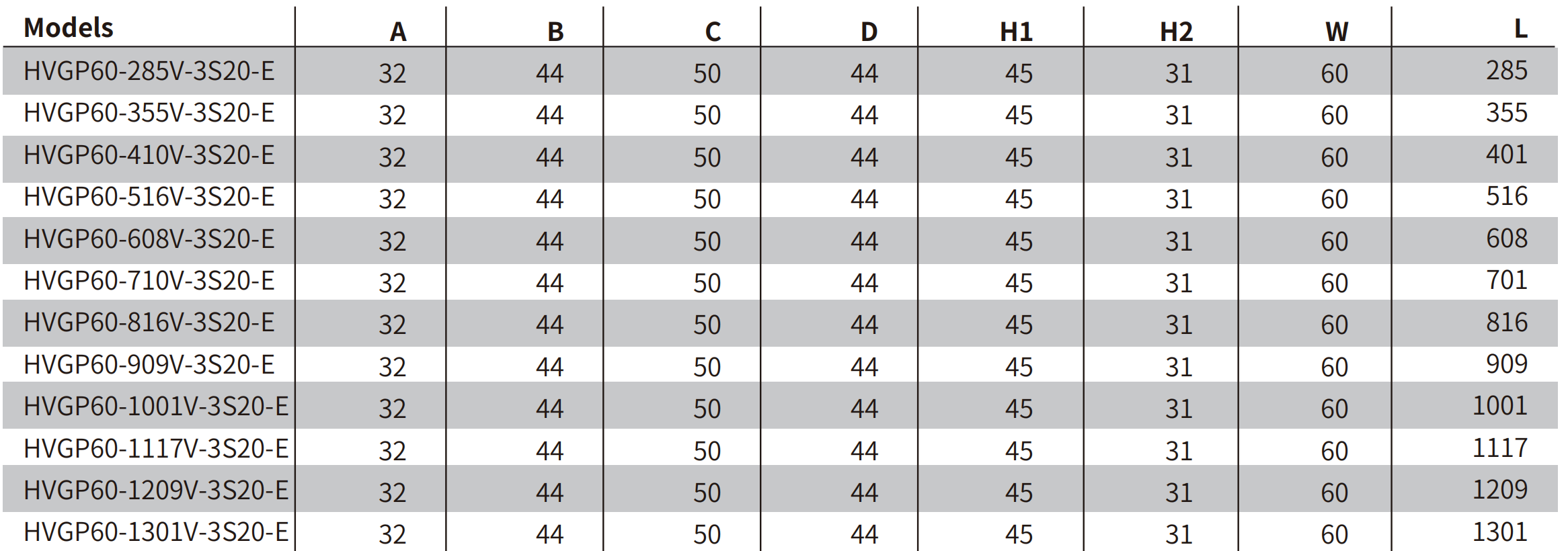

HVGP60 Design Parameters
