Description
Product Features
- The shell is made of high-quality stainless steel
- Optional vacuum source with external fan or generator
- Large area internal cavity structure
- The shell is made of stainless steel, with flange mounting holes reserved at the top
- Large area oval inner cavity structure design
- Foam sponge for adsorption, good sealing, long life, sponge can be purchased and replaced by itself
Product Structures
Body: made of aluminum alloy, small size, light weight
(1) Air intake: Connect the fan
(2) Connection port: blowback interface
(3) Mounting screw: tighten the screw adjustment, you can remove
the side panel
Product Advantages
- High strength, mainly used in high load conditions
- Achieve stable and fast capture of products
- Increase the adsorption area, large adsorption force

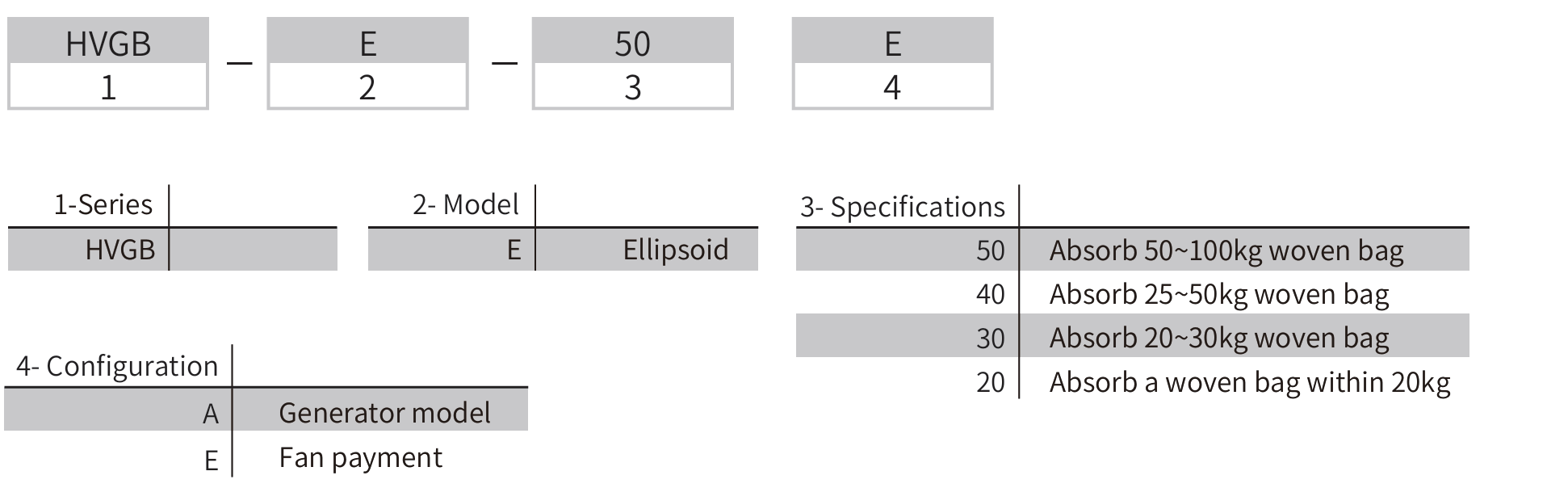

HVGB-E Ordering no

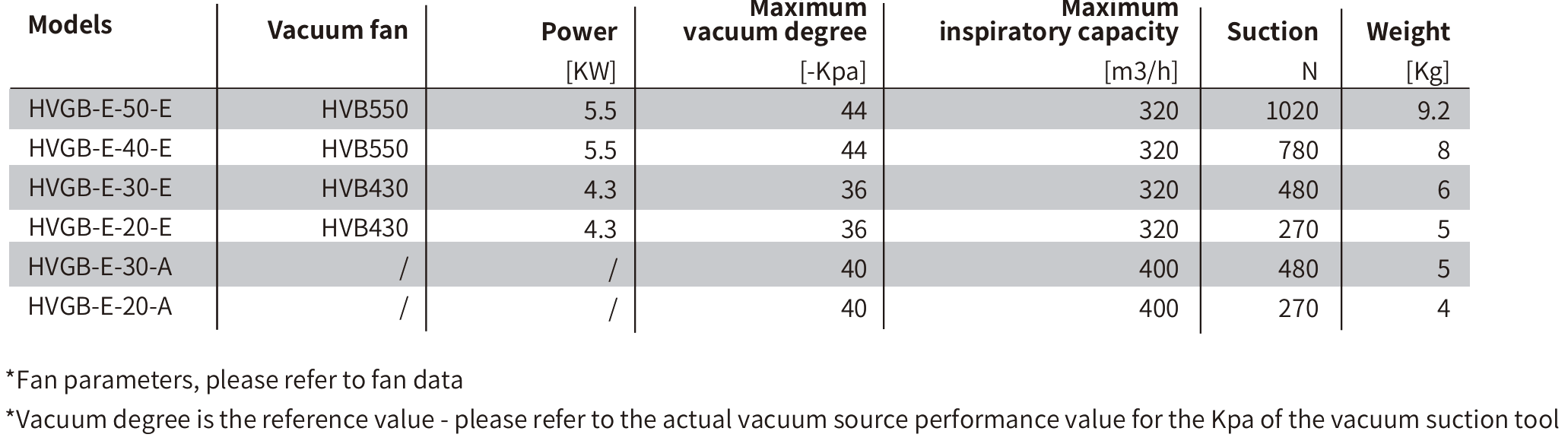

HVGB-E Technical Parameters

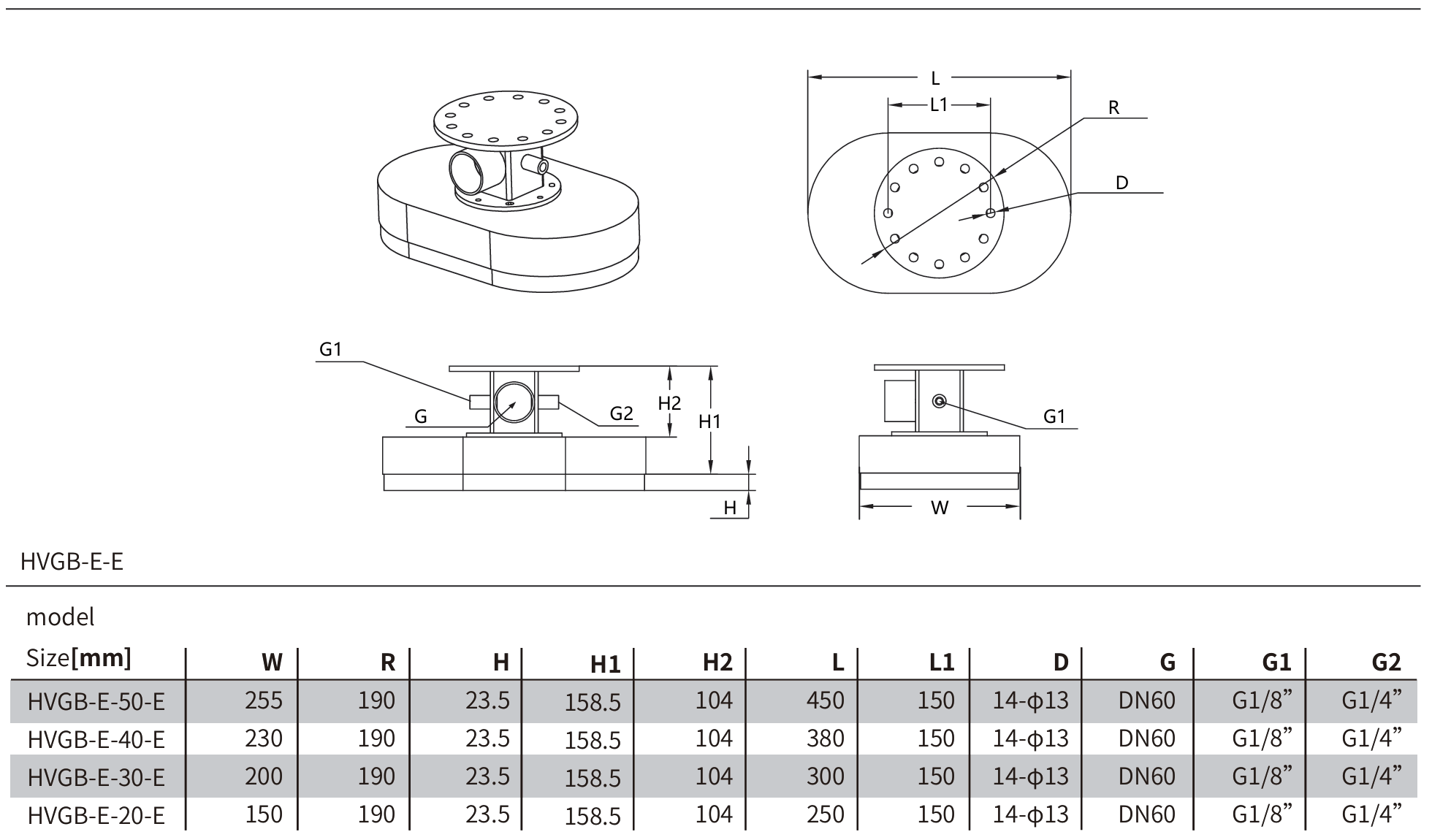

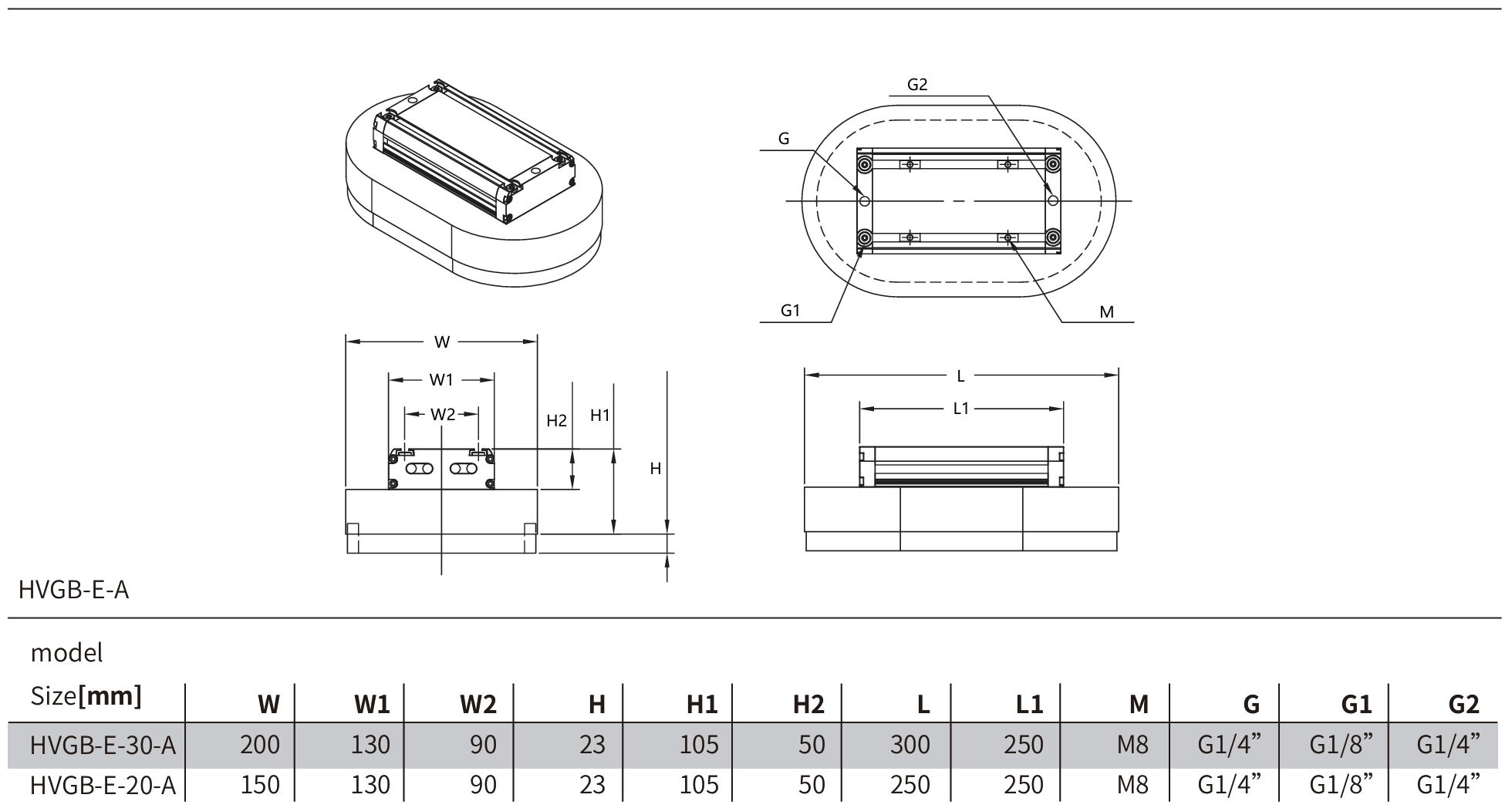

HVGB-E Design Parameters
