LH-TC Pneumatic Clamping Finger Gripper LT-PG2-300
LH-TC Pneumatic Clamping Finger Gripper LT-PG2-300 - Image 2

LH-TC Pneumatic Clamping Finger Gripper LT-PG2-300

Pneumatic gripper is one of end-effectors which takes compressed air as power to clamp or grab workpieces, can replace human hand, used to catch workpieces with different shapes, measurements, weights and materials, to combine grabbing force and grabbing stroke perfectly and then improve the stability of production process.

SKU: LT-PG2-300
Category: ,
Tags:

Description

LH-TC CLAMPING TECHNOLOGY

Technology highlights

Model Rules
For example：LT-PG2-125A-CFM-HT-DP LT-PG3-100B-OFM-HT-PP

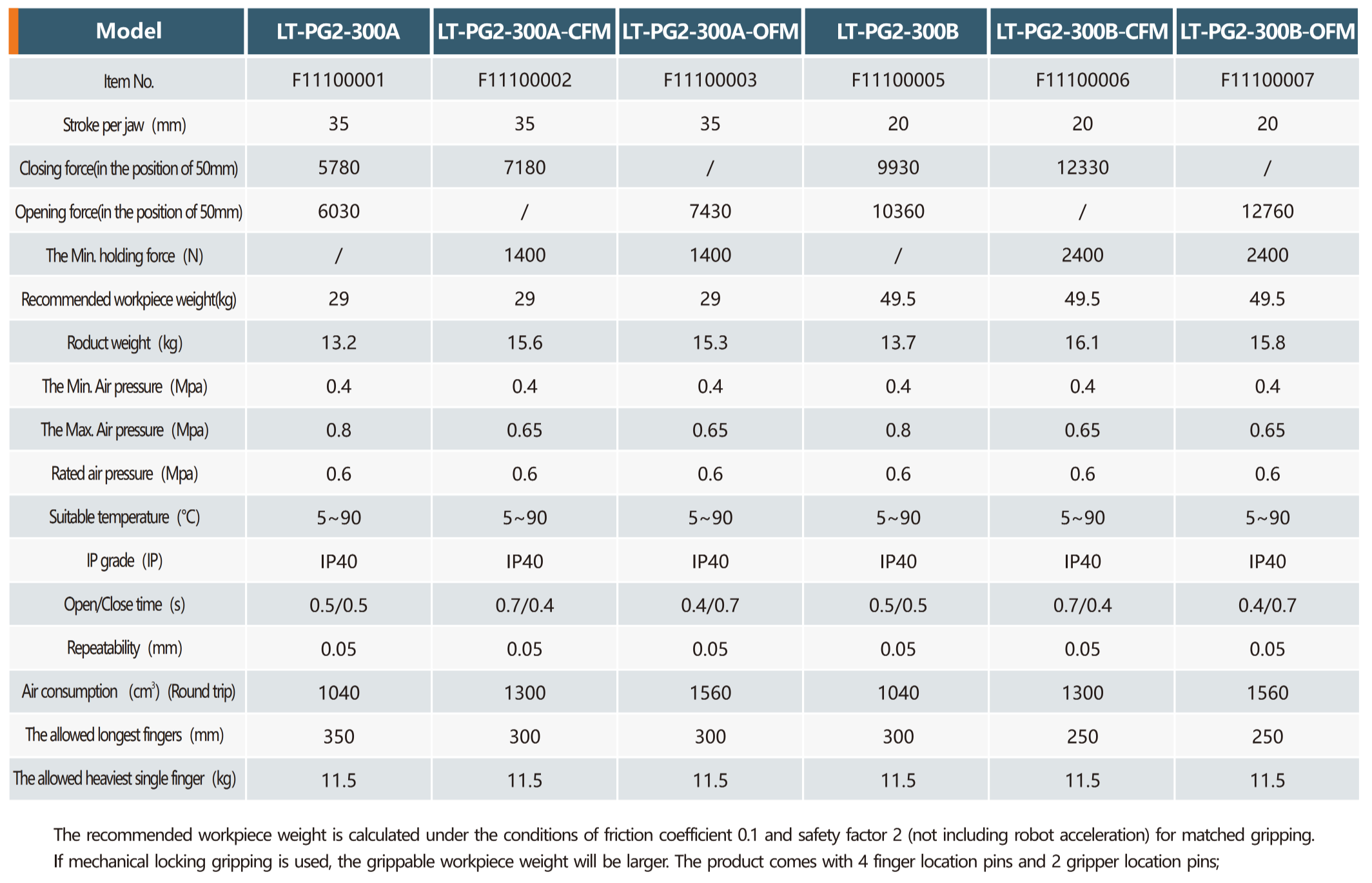

Model：LT-PG2-300 series

  • Stroke per jaw: 35mm/20mm
  • Recommended workpiece weight: 29-49.5kg
  • Weight: 13.2-16.1kg
  • Larger piston area design, greater gripping force
  • Multi-tooth guide rail design, precise gripping of various workpieces
