LH-TC Pneumatic Clamping Finger Gripper LT-TG3-64

LH-TC Pneumatic Clamping Finger Gripper LT-TG3-64

Pneumatic gripper is one of end-effectors which takes compressed air as power to clamp or grab workpieces, can replace human hand, used to catch workpieces with different shapes, measurements, weights and materials, to combine grabbing force and grabbing stroke perfectly and then improve the stability of production process.

SKU: LT-TG3-64
Category: ,
Tags:

Description

LH-TC CLAMPING TECHNOLOGY

Technology highlights

Model Rules
For example：LT-PG2-125A-CFM-HT-DP LT-PG3-100B-OFM-HT-PP

Model：LT-TG3-64 series

  • Stroke per jaw: 6mm
  • Recommended workpiece weight: 3.5kg
  • Weight: 0.45-0.5kg

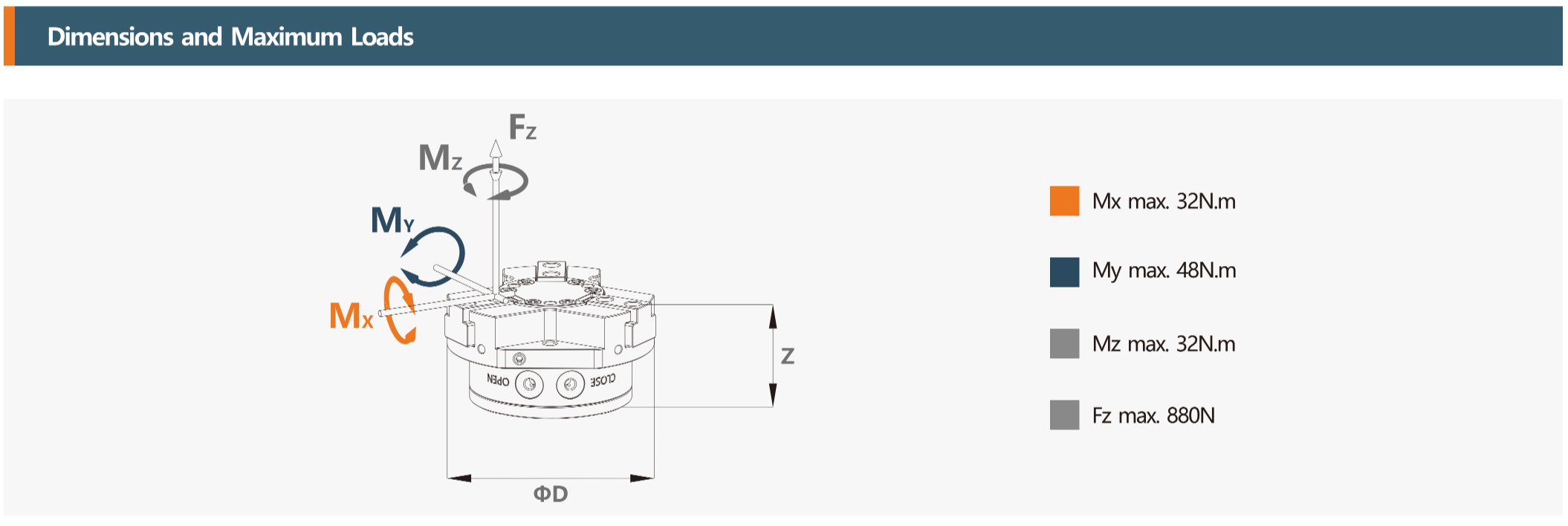

  • The perfect combination of T-type guide rail and trapezoidal structure can meet the requirements of bearing greater torque and bending moment
  • The coating process ensures that the precision is almost lossless after millions of grindings
  • Self-lubricating design, longer maintenance-free service life
