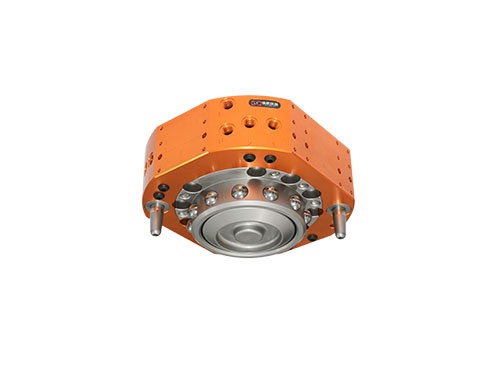

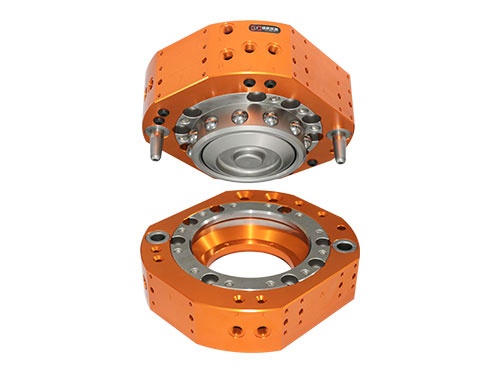

LH-TC Robotic Tool Changer LTC-0200F

LH-TC·Tool changer is a flexible device which can help single industrial robot match with more end-effectors, each robot side can match with more tool sides, increase robot production lines’ flexibility and use of robots. Widely used in end-of-arm-tools switching, such as spot welding torchs, end-effectors, grippers, press guns, deburring removal tools, visible tools, Ultrasonic welding…

Description

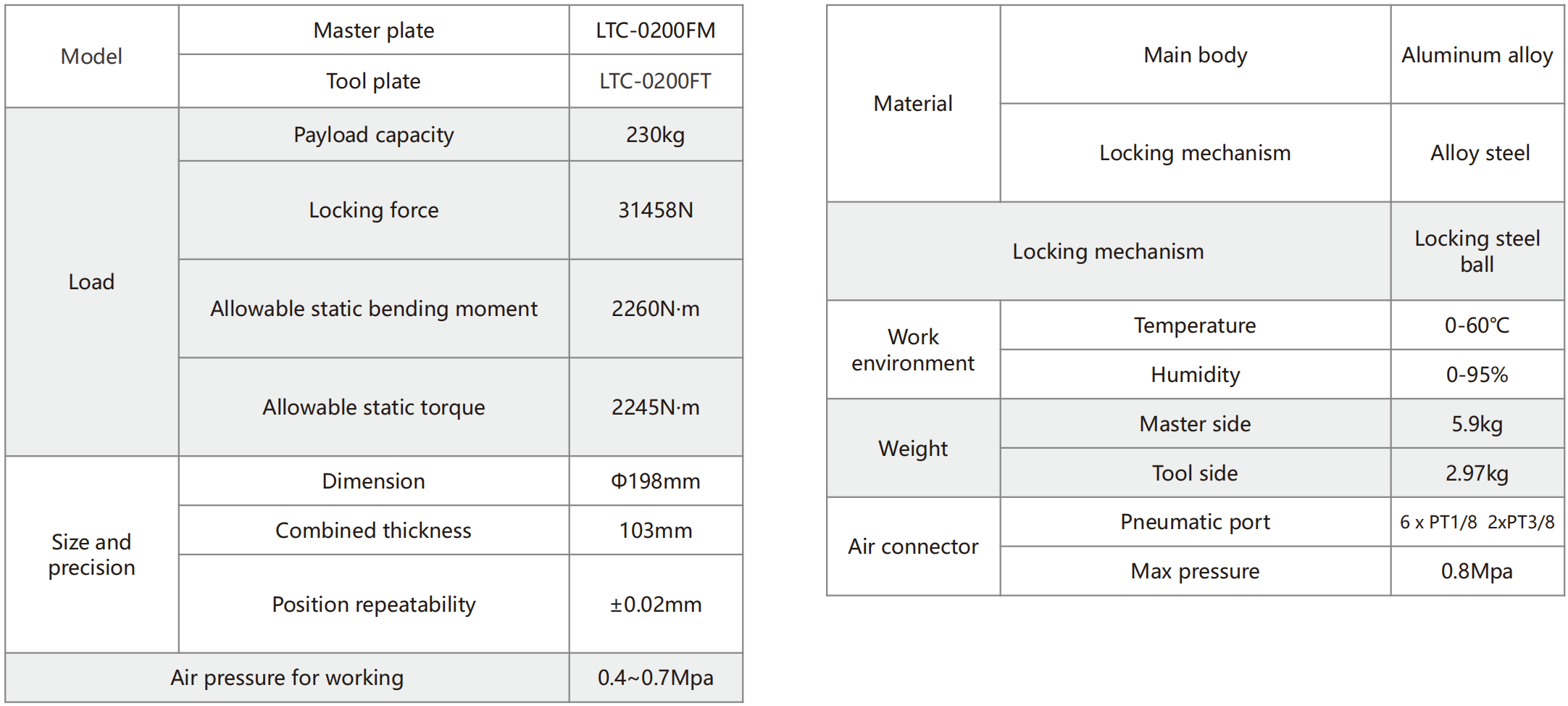

Model:LTC-0200F

Recommended payload ≤ 230kg.
Locking force: 31458N allowable moment: 2260N·m (static) allowable torque: 2245N·m (static).

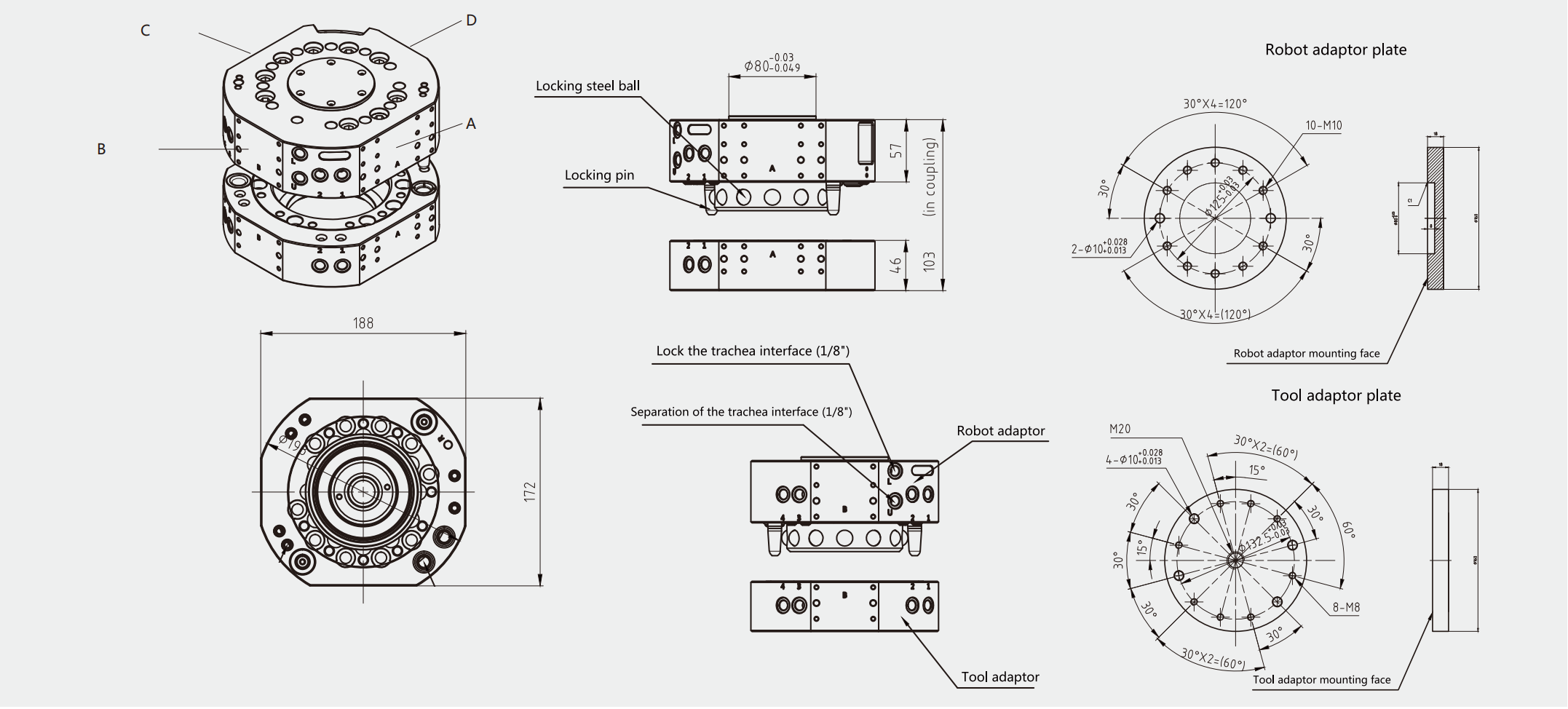

6*PT1/8 pneumatic port ,2*PT3/8 pneumatic port, and 4 module mounting interfaces.
Suitable for handling, palletizing, welding, grinding, deburring and other applications.
With air pressure loss self-locking function, even if the air pressure in master plate cut off accidentally, master plate and tool plate will not be separate.
Standard configuration: Master plate lock/unlock sensor, tool plate in position detection sensor.
