Description
Product Features
- Compact and flexible design
- Using high-strength aluminum profiles
- Adopting HANWHA’s unique high-efficiency valve body technology, saving 50% air consumption
- Suitable for rough surfaces, leaks, deformations, and irregular workpieces
- RB is suitable for bag and film packaging workers
- European original imported sealing sponge pad, with a longer lifespan

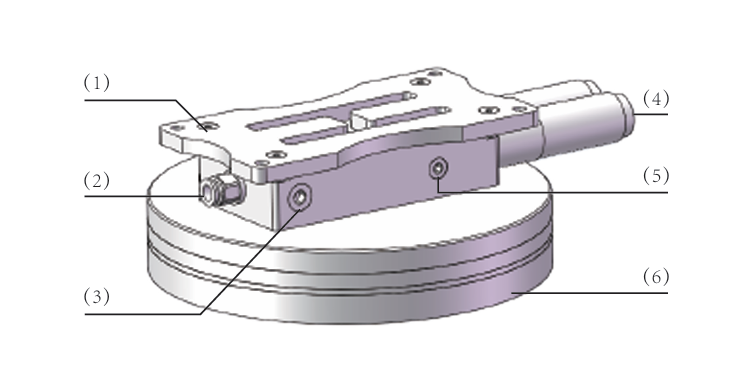

Product Structures
Main body: Made of aluminum alloy, small in size and light in weight
(1) Installing screws: Tighten the screws and adjust to remove
the side panel
(2) Connection port: Compressed air inlet
(3) Connection port: 2-position intake (both sides)
(4) Silencer: made of anodized aluminum oxide
(5) Connection port: Vacuum detection port
(6) Sponge pad: Imported sealed sponge pad
Product Advantages
- For rigid products with irregular surfaces, the effect is better

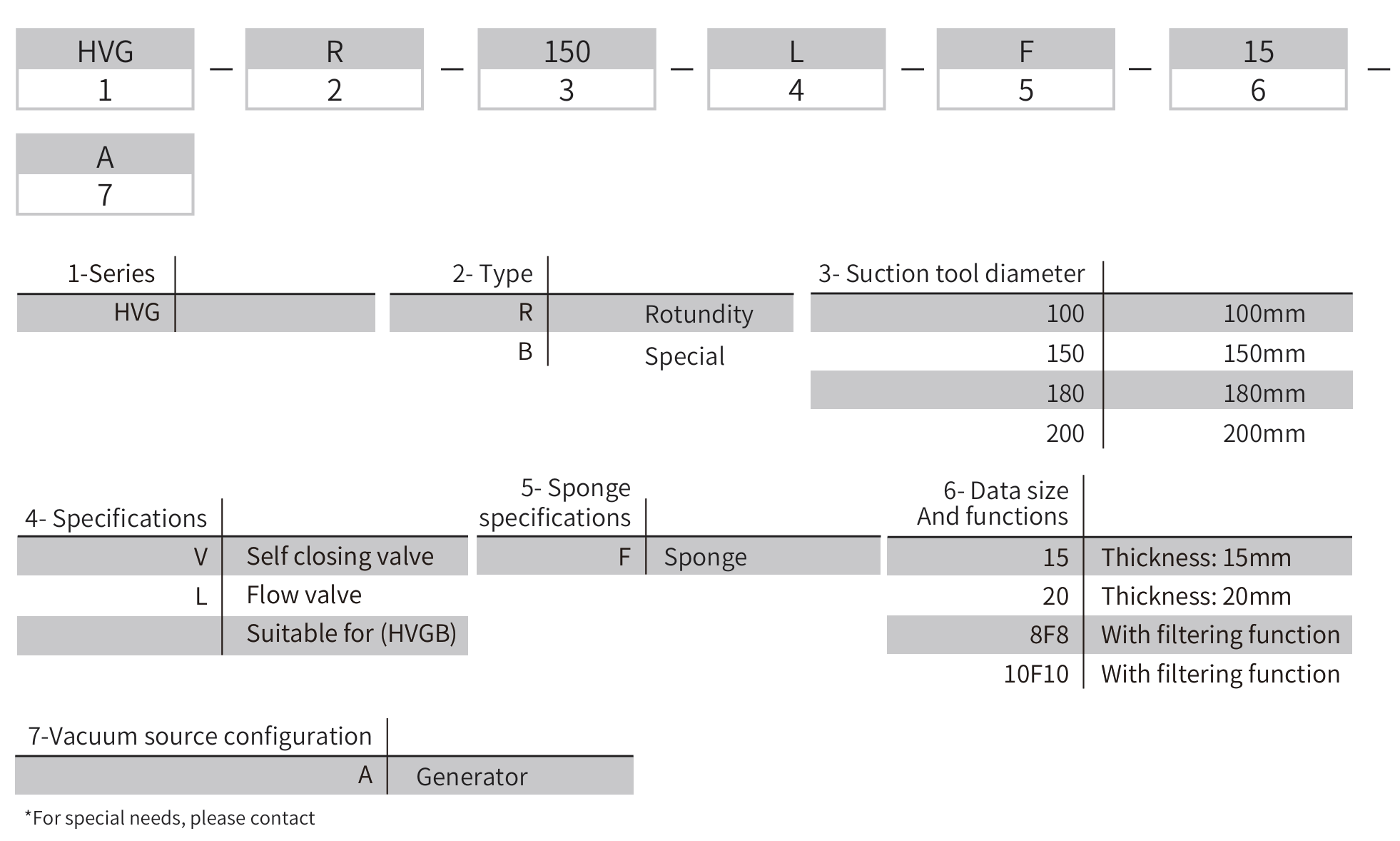

HVG Ordering no
HVGR/B Ordering no

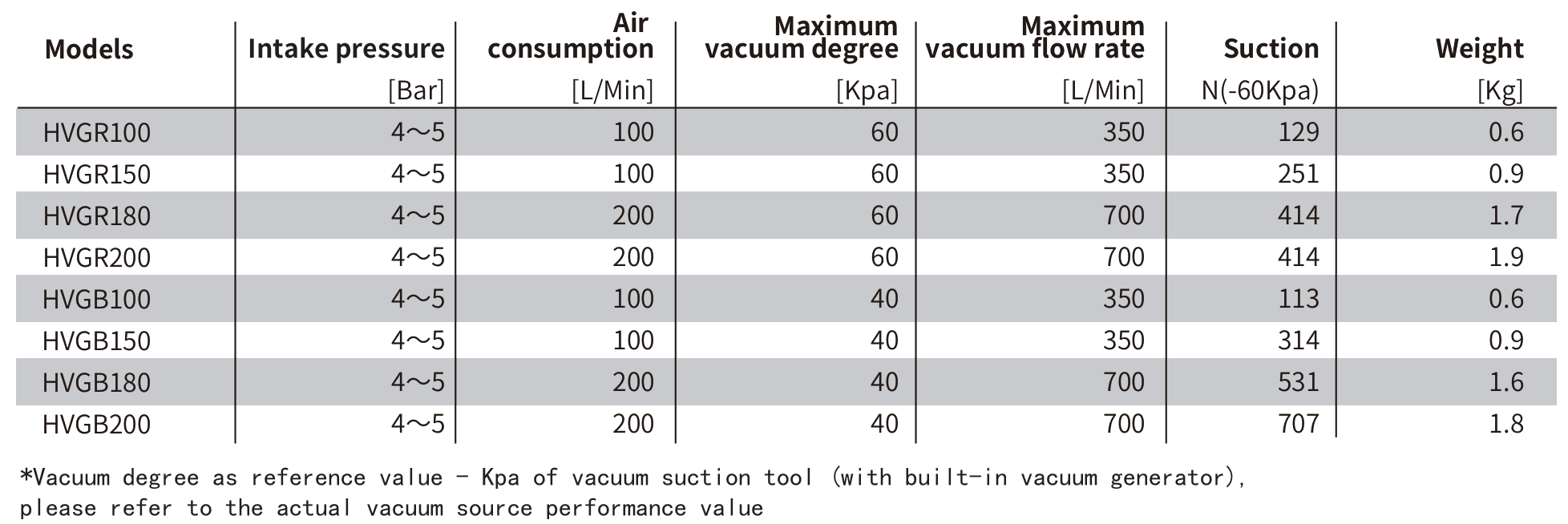

HVGR/B Technical Parameters

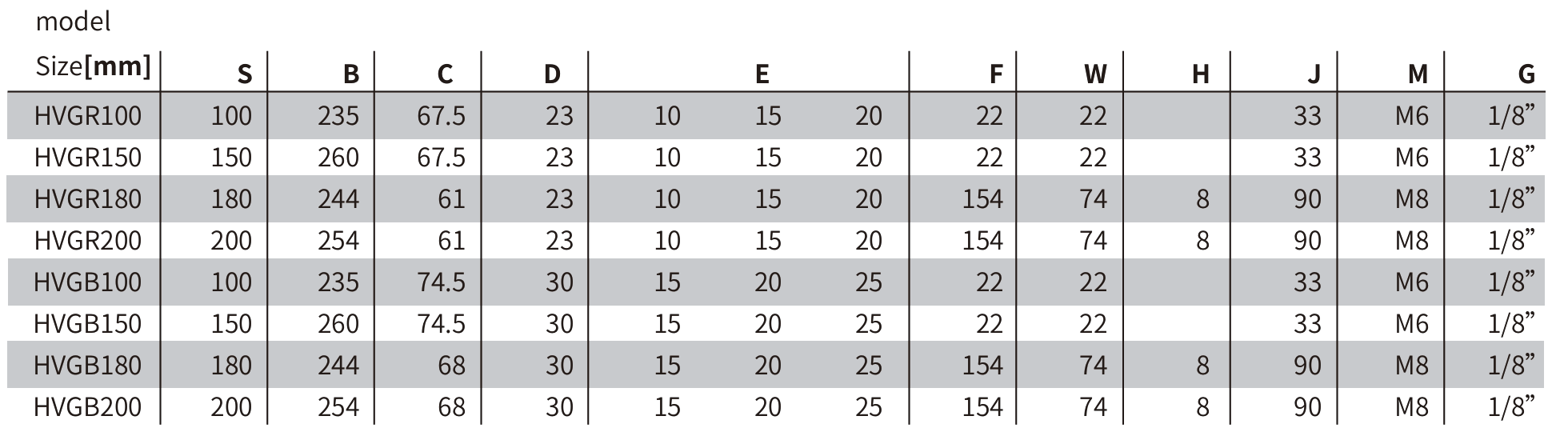

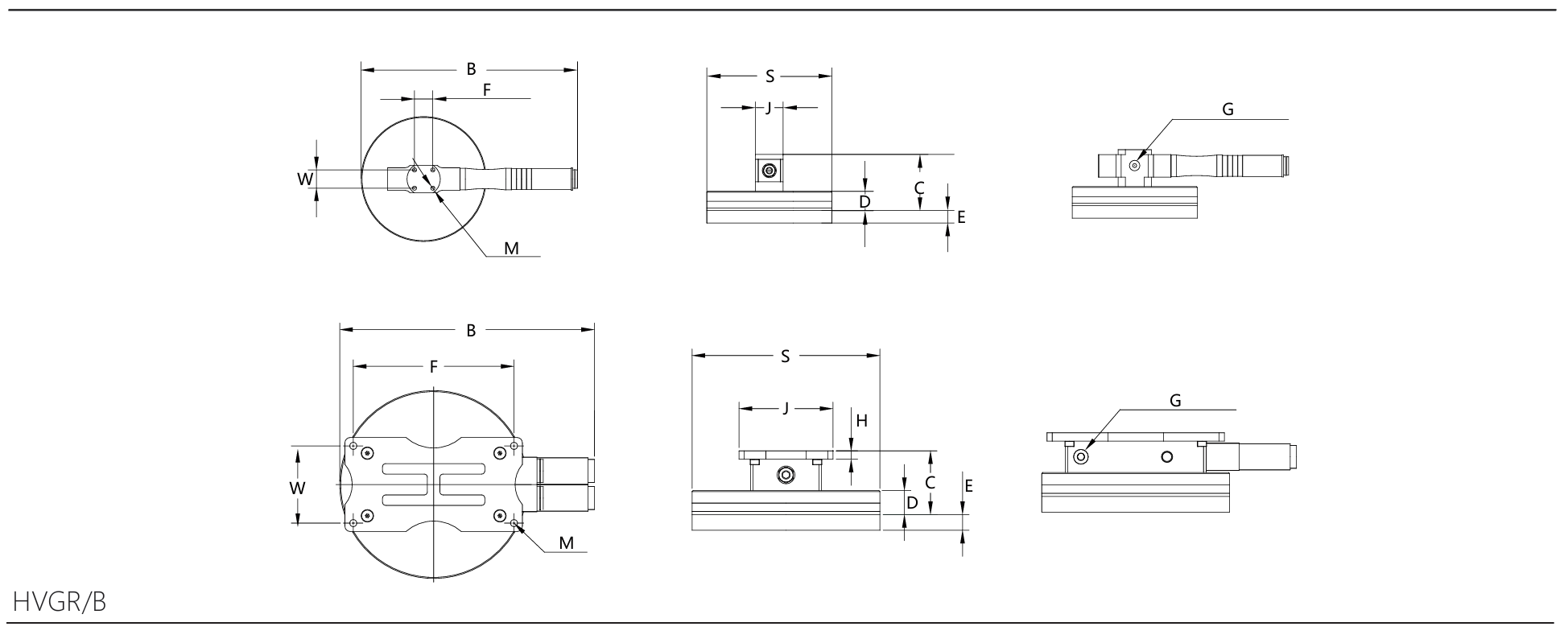

HVGR/B Design Parameters
