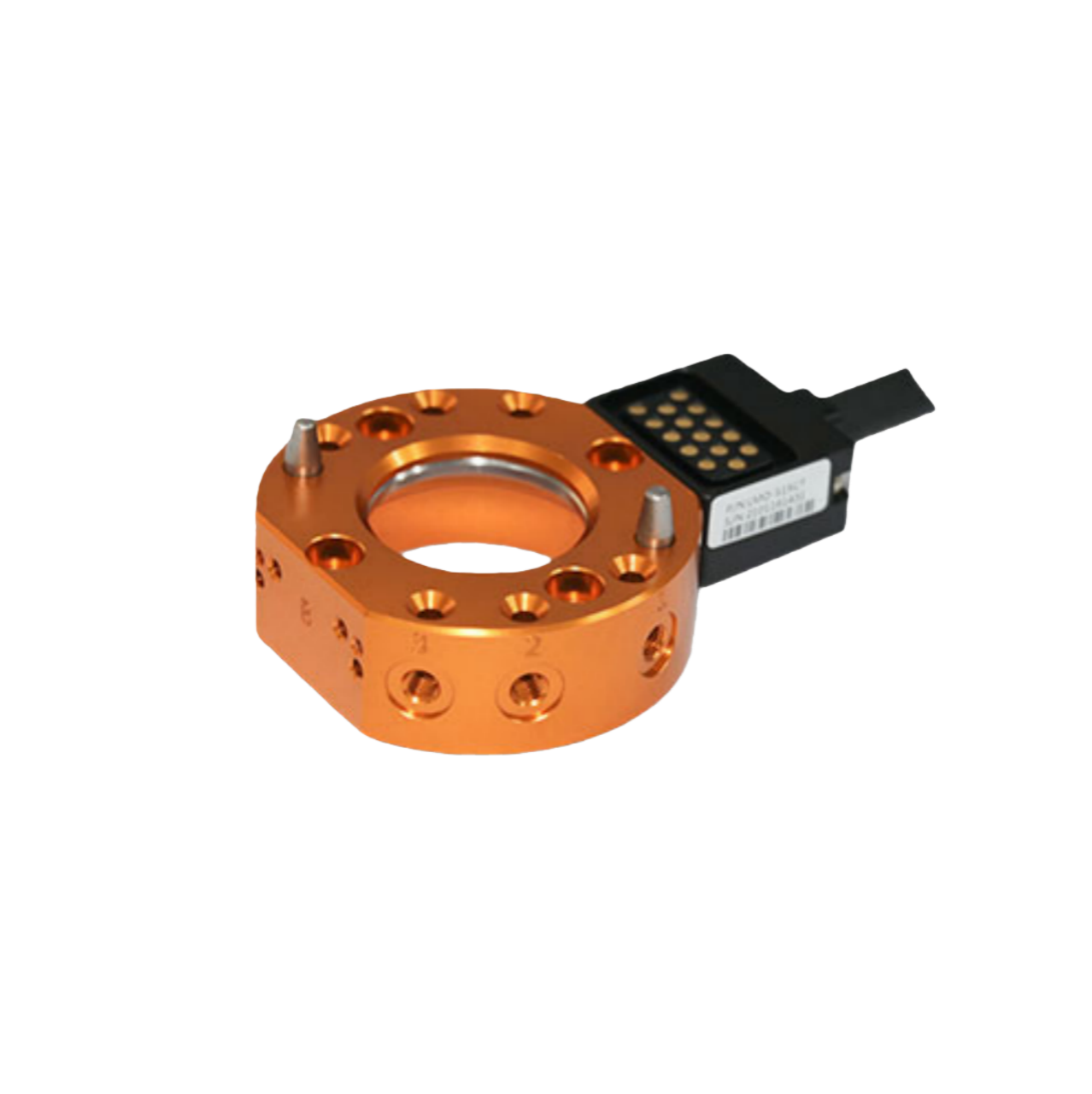

LH-TC Robotic Tool Changer LTC-0010F

LH-TC·Tool changer is a flexible device which can help single industrial robot match with more end-effectors, each robot side can match with more tool sides, increase robot production lines’ flexibility and use of robots. Widely used in end-of-arm-tools switching, such as spot welding torchs, end-effectors, grippers, press guns, deburring removal tools, visible tools, Ultrasonic welding…

Description

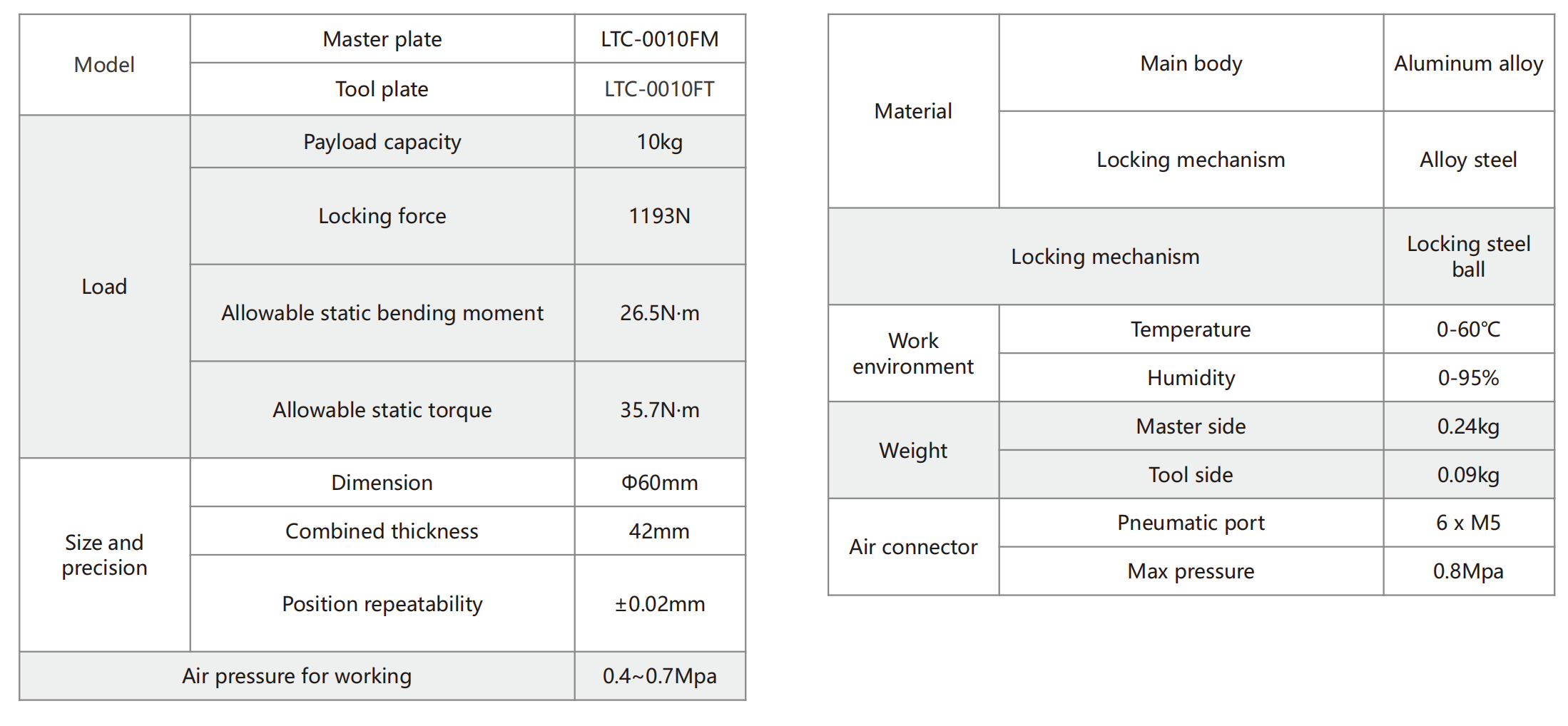

Model: LTC-0010F

Recommended payload ≤ 10kg.
Locking force: 1193N allowable moment: 26.5N·m (static) allowable torque: 35.7N·m(static).
6*M5 Pneumatic port connection and 2 module mounting interfaces.
Suitable for assembly, handling, palletizing etc.
With air pressure loss self-locking function, even if the air pressure in master plate cut off accidentally, master plate and tool plate will not be separate.
