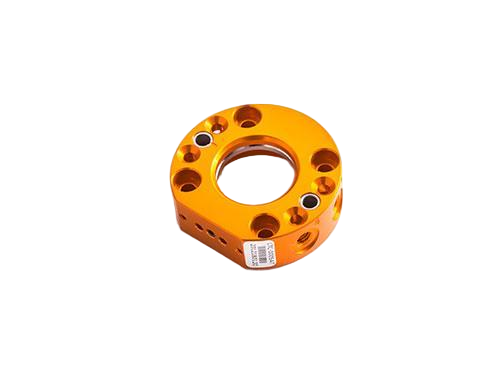

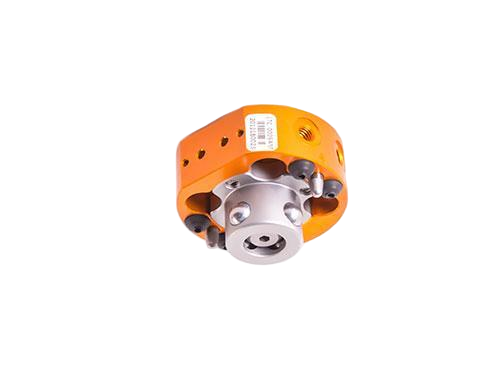

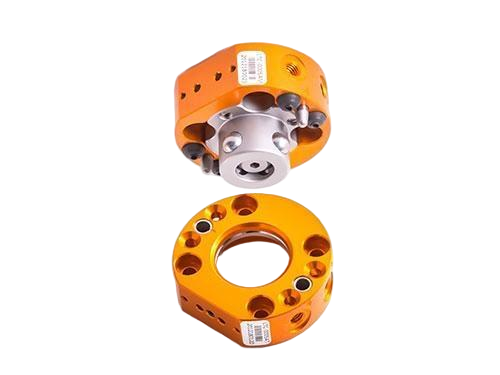

LH-TC Robotic Tool Changer LTC-0005A

LH-TC·Tool changer is a flexible device which can help single industrial robot match with more end-effectors, each robot side can match with more tool sides, increase robot production lines’ flexibility and use of robots. Widely used in end-of-arm-tools switching, such as spot welding torchs, end-effectors, grippers, press guns, deburring removal tools, visible tools, Ultrasonic welding…

Description

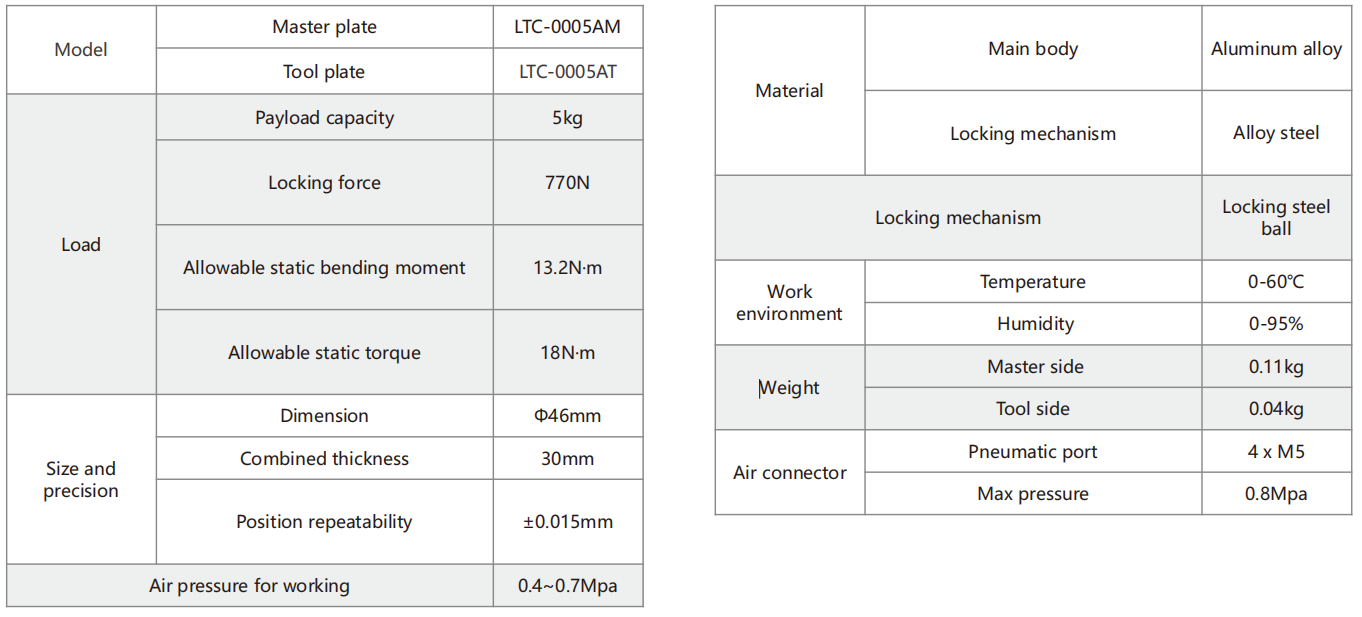

Model: LTC-0005A

Recommended payload≤5kg;
Locking force：770N Allowable static moment：13.2N·m Allowable static torque：18N·m;
With 4 x M5 air ports, 1 available module interfaces;
Suitable for assembly, handling;
Air pressure lost self locking function, the master plate and tool plate won’t be separated even the air pressure in master plate lost accidentally.
