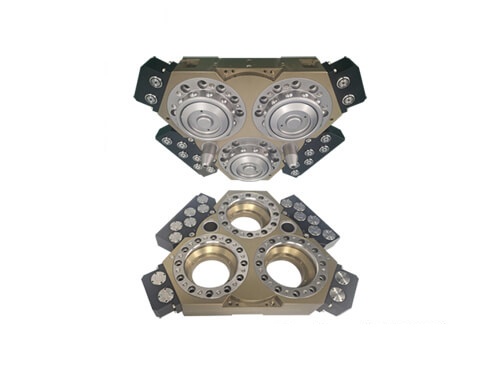

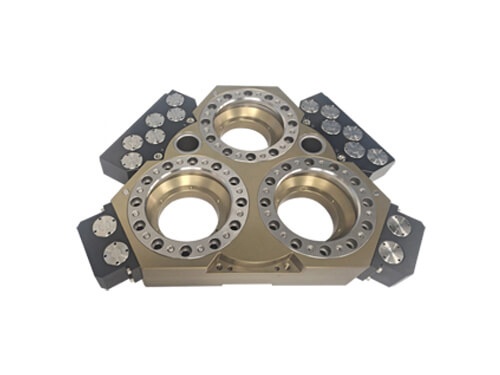

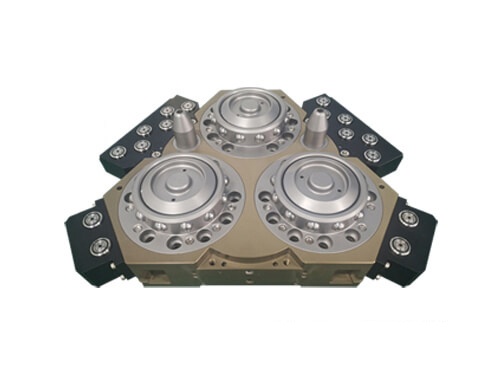

LH-TC Robotic Tool Changer LTC-1300A

LH-TC·Tool changer is a flexible device which can help single industrial robot match with more end-effectors, each robot side can match with more tool sides, increase robot production lines’ flexibility and use of robots. Widely used in end-of-arm-tools switching, such as spot welding torchs, end-effectors, grippers, press guns, deburring removal tools, visible tools, Ultrasonic welding…

Description

Model:LTC-1300A

Recommended payload ≤ 1300kg.
Locking force: 106263N allowable moment: 6830N·m (static) allowable torque: 6920N·m (static).
6 module mounting interfaces.
Suitable for handling, palletizing, welding, grinding, deburring and other applications.
With air pressure loss self-locking function, even if the master plate cut off accidentally, master plate and tool plate will not separated.
Standard configuration: Master plate lock/unlock sensor, tool plate in position detection sensor.
