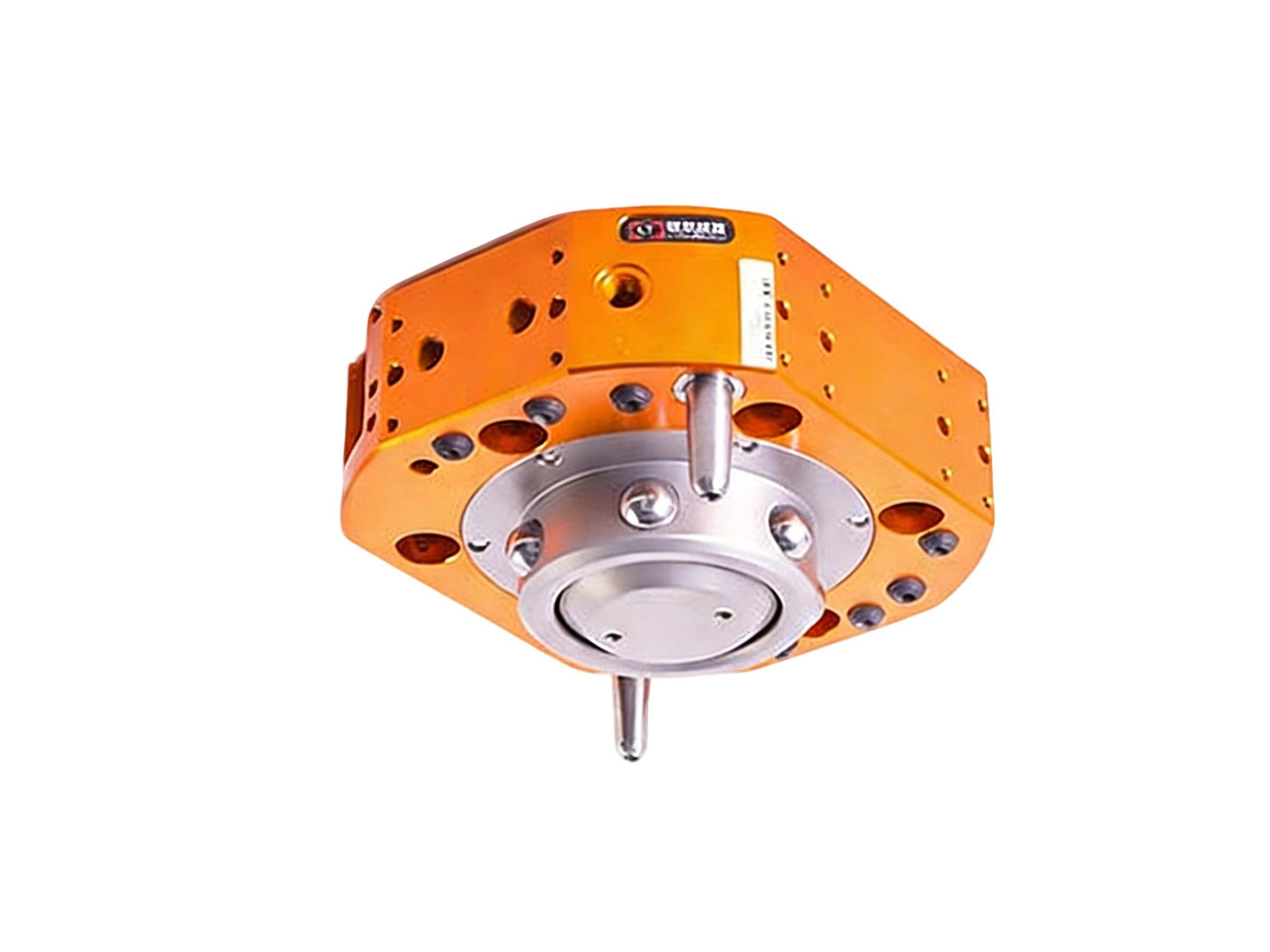

LH-TC Robotic Tool Changer LTC-0120D

LH-TC·Tool changer is a flexible device which can help single industrial robot match with more end-effectors, each robot side can match with more tool sides, increase robot production lines’ flexibility and use of robots. Widely used in end-of-arm-tools switching, such as spot welding torchs, end-effectors, grippers, press guns, deburring removal tools, visible tools, Ultrasonic welding…

Description

Model:LTC-0120D

Recommended payload ≤ 120kg.
Locking force: Locking force: 15407N allowable moment: 842N·m (static) allowable torque: 1200N·m (static).
8*PT1/8 pneumatic port and 4 module mounting interfaces.
Suitable for handling, palletizing, welding, grinding, deburring and other applications.
With air pressure loss self-locking function, even if the air pressure in master plate cut off accidentally, master plate and tool plate will not be separate.
Standard configuration: Master plate lock/unlock sensor, tool plate in position detection sensor.
