Description
Product Features
- Flange connection suitable for general collaborative robots
- Suction surface is a rubber suction cup
- Lightweight and integrated vacuum detection and control in gripping system
- With automatic air replenishment function, suitable for specific materials or scenarios
- Continuous replenishment of vacuum during the suction process to ensure stable suction
Product Structures
(1)9-M4 6
(2)Connector port
Product Advantages
- Suitable for a variety of occasions that require precise grasping and moving of objects
- Free matching of lightweight robot automation handling
*ECP-01 electric suction cup example

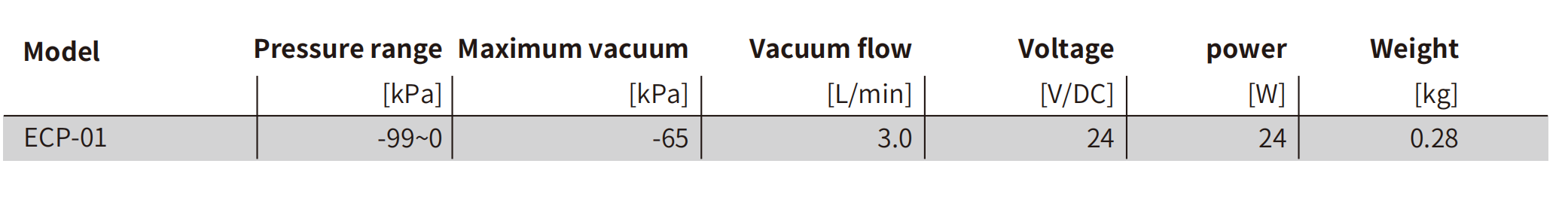

ECP-01 Technical Parameters
Define table

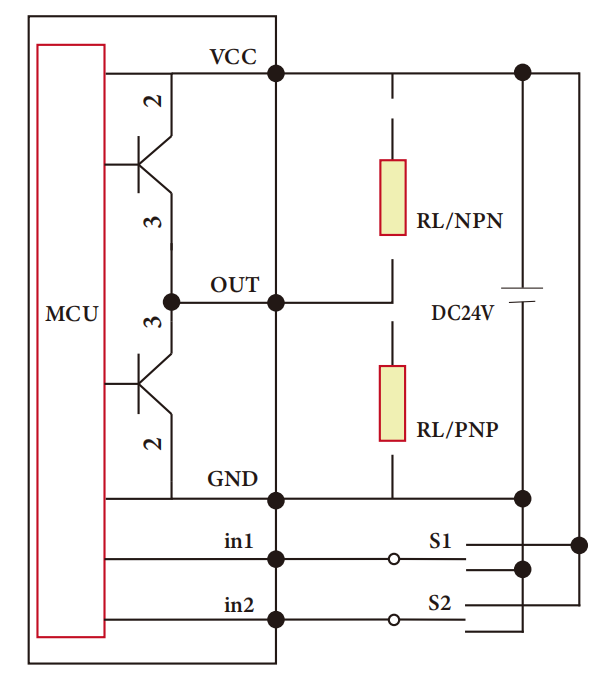

Circuit wiring diagram
1.RL/PNP load connection; output OUT is connected to the power supply GND:
2.RL/NPN load connection; output OUT connected to the power supply VCC:
3.Control input I/O can be selected as VCC or GND (PNP/NPN) signal;

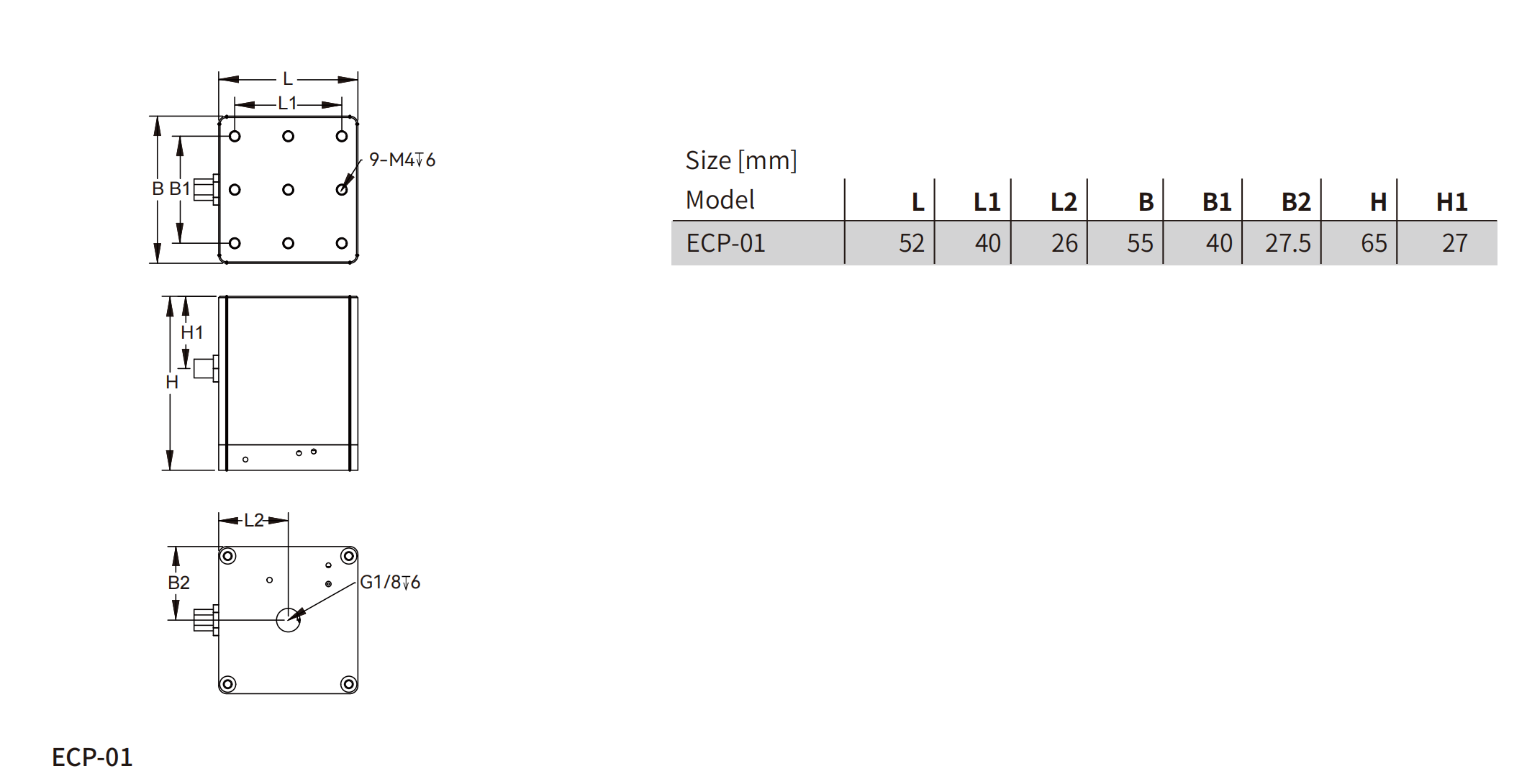

ECP-01 Design Parameters
