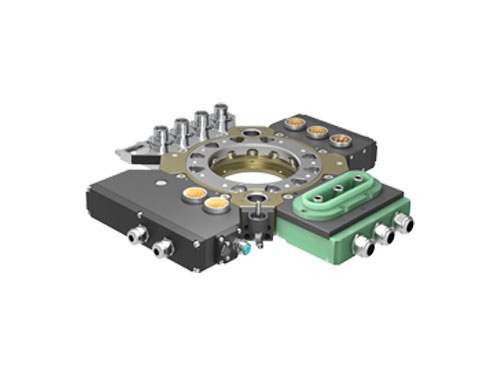

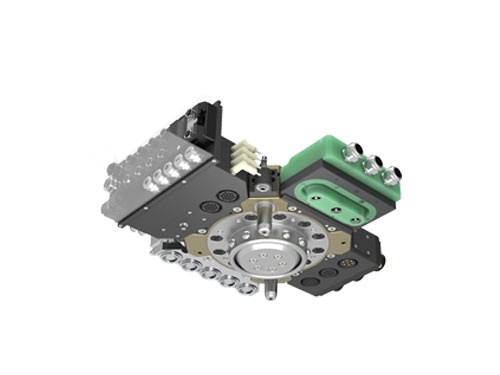

LH-TC Robotic Tool Changer LTC-0630F

LH-TC·Tool changer is a flexible device which can help single industrial robot match with more end-effectors, each robot side can match with more tool sides, increase robot production lines’ flexibility and use of robots. Widely used in end-of-arm-tools switching, such as spot welding torchs, end-effectors, grippers, press guns, deburring removal tools, visible tools, Ultrasonic welding…

Description

Model:LTC-0630F

Recommended payload ≤ 650kg.
Locking force: 72930N allowable Moment: 5000N·m (static) allowable torque: 5000N·m (static).
4 modules mounting interface.
Suitable for spot welding, assembly, handling and other applications.
With air pressure loss self-locking function, even if the master plate cut off accidentally, Mater plate and tool plate will not separated.
Standard configuration: Master plate lock/unlock sensor, tool plate in position detection sensor.
ISO160 standard flange interface.
