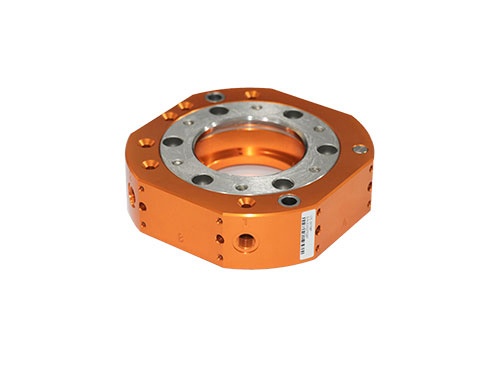

LH-TC Robotic Tool Changer LTC-0070B

LH-TC·Tool changer is a flexible device which can help single industrial robot match with more end-effectors, each robot side can match with more tool sides, increase robot production lines’ flexibility and use of robots. Widely used in end-of-arm-tools switching, such as spot welding torchs, end-effectors, grippers, press guns, deburring removal tools, visible tools, Ultrasonic welding…

Description

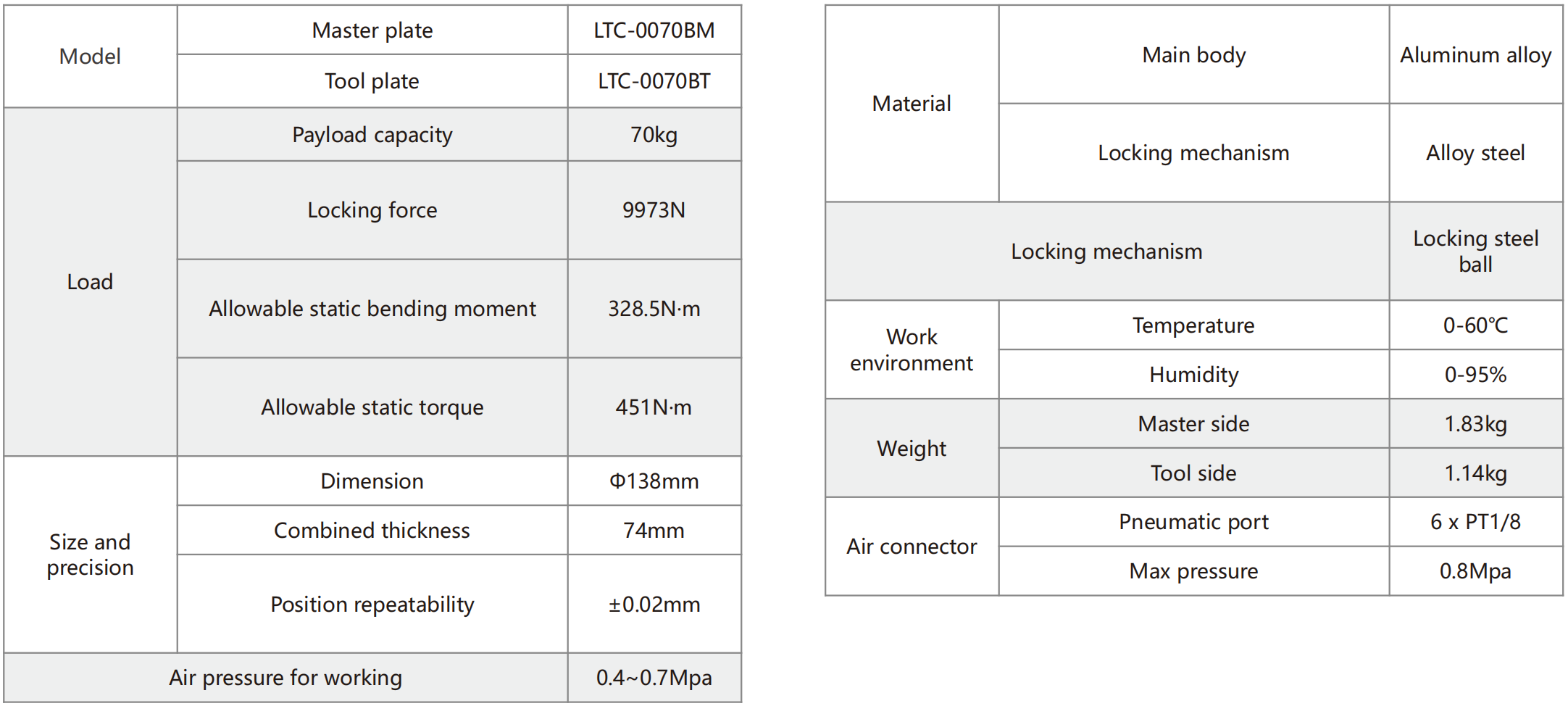

Model: LTC-0070B

Recommended payload ≤ 70kg.
Locking force: 9973N allowable moment: 328.5N·m (static) allowable torque: 451N·m(static).
6*PT1/8 pneumatic port connection and 4 module mounting interfaces.
Suitable for handling, palletizing, welding, grinding, deburring and other applications.
With air pressure loss self-locking function, even if the air pressure in master plate cut off accidentally, master plate and tool plate will not be separate.
Standard configuration: Master plate lock/unlock sensor, tool plate in position detection sensor.
