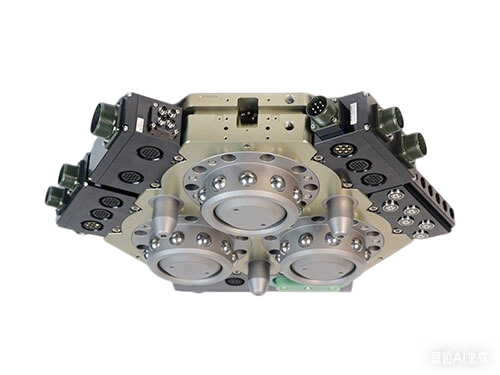

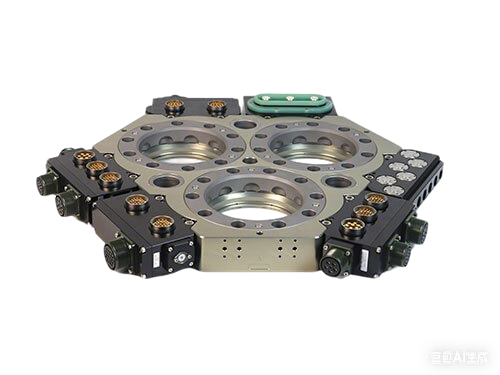

LH-TC Robotic Tool Changer LTC-3000A

LH-TC·Tool changer is a flexible device which can help single industrial robot match with more end-effectors, each robot side can match with more tool sides, increase robot production lines’ flexibility and use of robots. Widely used in end-of-arm-tools switching, such as spot welding torchs, end-effectors, grippers, press guns, deburring removal tools, visible tools, Ultrasonic welding…

Description

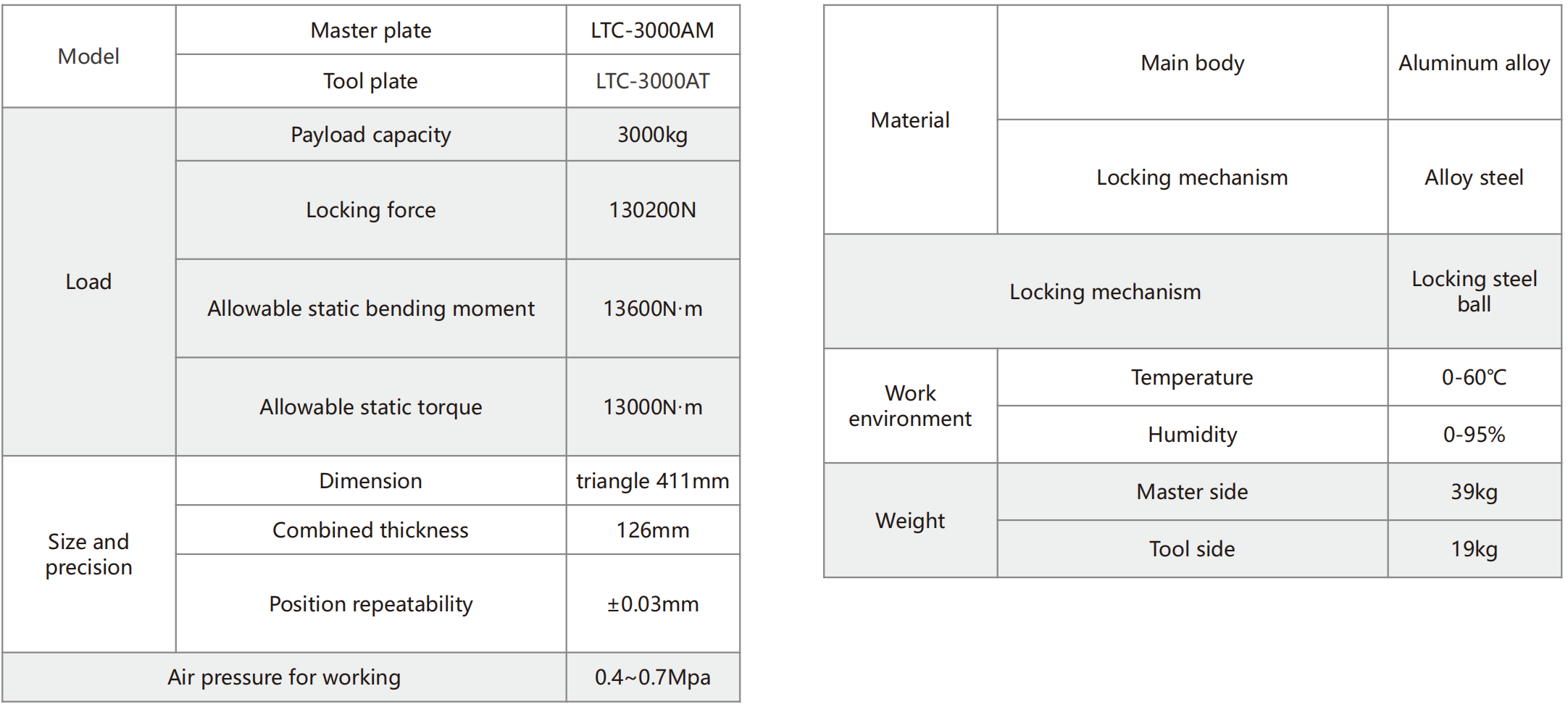

Model:LTC-3000A

Recommended payload ≤ 3000kg.
Locking force: 130200N allowable moment: 13600N·m (static) allowable torque:13000N·m (static).
4 module mounting interfaces.
Suitable for spot welding, assembly, handling and other applications.
With air pressure loss self-locking function, even if the master plate cut off accidentally, master plate and tool plate will not separated.
Standard configuration: Master plate lock/unlock sensor, tool plate in position detection sensor.
SO125, ISO160 standard flange interface.
